Top Seller
TENNSMITH BRAKES in Dodge Center,
Location:
Dodge Center, MN
Price:
$1,465 USD
Manufacturer:
TENNSMITH
Model:
HBU48-16
Capacity:
16 GAUGE

Specifications

Condition:
new
Stock number:
061658
Finger widths:
2" 3" 4"
Bending length:
48-1/4"
Capacity, mild steel:
16 GAUGE
Maximum depth of box:
4"
Maximum lift of beam:
1-1/4"
Minimum reverse bend:
1/4"
Front to rear beam adjustment:
5/8"
Subcategory:
Brakes
Subcategory 2:
Box & pan

Description

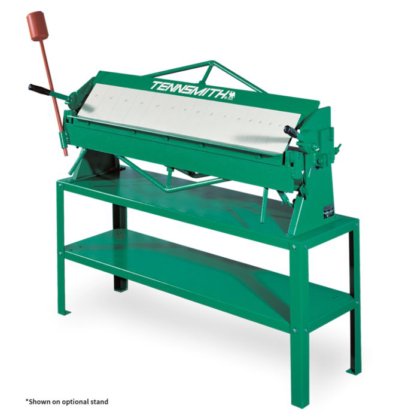

TENNSMITH (NEW) MODEL HBU48-16 HEAY-DUTY
BENCH HAND BRAKE
CAPACITY, MILD STEEL .............. 16 GAUGE
BENDING LENGTH .................... 48-1/4"
MAXIMUM DEPTH OF BOX .............. 4"
MAXIMUM LIFT OF BEAM .............. 1-1/4"
FRONT TO REAR BEAM ADJUSTMENT ..... 5/8"
MINIMUM REVERSE BEND .............. 1/4"
MINIMUM FLANGE IN CAPACITY MATERIAL 1"
FINGER WIDTHS ..................... 2" 3" 4"
FEATURES INCLUDE:
- SUITABLE FOR BOX & PAN OR STRAIGHT BENDING
- REMOVABLE APRON ANGLE AND APRON INSERT
- UPPER LEAF & NOSE BAR HAVE A WIDE RANGE OF
ADJUSTMENTS FOR RADIUS BENDING
- APRON STOP ROD FOR REPEAT BENDS
- EXTENSION HANDLES
- COUNTERWEIGHT
- ALL-STEEL WELDED CONSTRUCTION
- BRONZE BEARINGS AT PIVOT POINTS
