Top Seller
TENNSMITH HB97-12 in Dodge Center,
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
TENNSMITH
Model:
HB97-12

Specifications

Condition:
new
Stock number:
061520
Subcategory:
Brakes
Subcategory 2:
Box & pan

Description

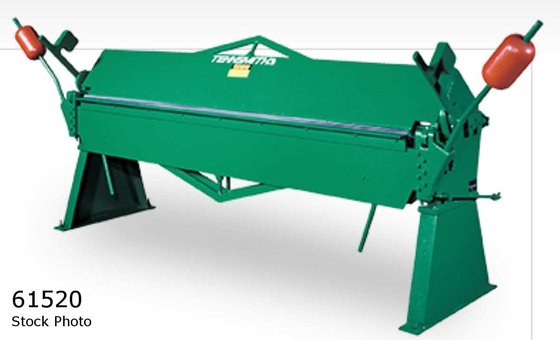

TENNSMITH (NEW) MODEL HB97-12 HEAVY-DUTY
HAND BRAKE
CAPACITY, MILD STEEL ............... 12 GAUGE
BENDING LENGTH ..................... 97"
MAXIMUM LIFT OF BEAM ............... 2-1/4"
FRONT TO REAR BEAM ADJUSTMENT ...... 1/2"
MINIMUM REVERSE BEND ............... 1/4"
MINIMUM FLANGE IN CAPACITY MATERIAL 1"
FEATURES INCLUDE:
- WELDED STEEL PLATE CONSTRUCTION
- HEAVY TRUSS RODS AND BRACES
- RIGIDITY REQUIRED FOR UPPER BEAM ADJUSTMENT
WITHOUT THE USE OF WRENCHES
- THRUST BEARINGS
- UPPER LEAF ADJUSTMENT SCREWS PERMIT QUICK,
ACCURATE ALIGNMENT FOR DIFFERENT MATERIAL
THICKNESSES AND RADII
- LEVELING SCREWS & LOCK NUTS ON THE PEDESTAL
- JACK SCREWS & TENSIONER BOLTS ON THE APRON
- TRUSS RODS ON THE APRON, BASE & UPPER BEAM
- FULLY ADJUSTABLE COUNTER BALANCES TO
FACILITATE THE BENDING PROCESS
- REPLACEABLE NOSE BAR AND APRON INSERTS
- REMOVEABLE APRON ANGLE AND INSERT PERMIT
1/4" REVERSE BENDS IN LIGHTER MATERIAL
- BORED IN LINE TO ENSURE PERFECT ALIGNMENT,
