TENNSMITH F6-48-12 in Dodge Center,
Location:
Dodge Center, MN, USA
Manufacturer:
TENNSMITH
Model:
F6-48-12

Specifications

Condition:
new
Stock number:
061202
Subcategory:
Brakes
Subcategory 2:
Box & pan

Description

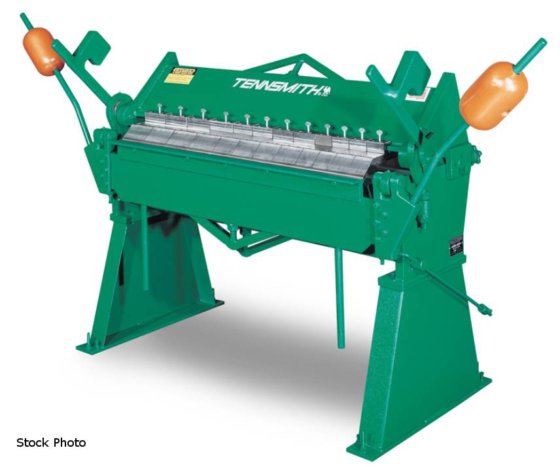

TENNSMITH (NEW) MODEL F6-48-12 BOX & PAN
BRAKE
CAPACITY - MILD STEEL ............. 12 GAUGE
CAPACITY - STAINLESS .............. 16 GAUGE
BENDING LENGTH .................... 48"
MAXMIUM LIFT OF BEAM .............. 1-1/2"
FRONT TO REAR BEAM ADJUSTMENT ..... 1/2"
MAXIMUM DEPTH OF BOX .............. 6"
MINIMUM REVERSE BEND .............. 1/4"
MINIMUM FLANGE IN CAPACITY MATERIAL 1"
FINGER WIDTHS ..................... 3" 4" 5"
STANDARD FEATURES:
- HEAVY DUTY FORMING CAPABILITY
- FLEXIBILITY OF REMOVEABLE 6" BOX DEPTH
FINGERS
- AMPLE CLAMPING AND EASY-TO-USE NOSE BAR
ADJUSTMENTS ALLOW FOR QUICK SETTING BEND
RADIUS
- WELDED STEEL PLATE CONSTRUCTION
- HEAVY TRUSS RODS AND BRACES PROVIDE
STRENGTH AND RIGIDITY
OTHER ADJUSTMENT FEATURES INCLUDE:
- LEVELING SCREWS & LOCK NUTS ON PEDESTALS
- JACK SCREWS AND TENSIONER BOLTS ON APRON
- TRUSS RODS ON APRON, BASE & UPPER BEAM
- FULLY ADJUSTABLE COUNTER BALANCES TO
FACILITATE THE BENDING PROCESS
- REMOVABLE APRON ANGLE AND INSERT PERMIT
