TENNSMITH BRAKES in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
TENNSMITH
Model:
HB121-18
Capacity:
18 GAUGE

Specifications

Condition:
new
Stock number:
061399
Bending length:
121"
Capacity, mild steel:
18 GAUGE
Maximum lift of beam:
1-7/8"
Minimum reverse bend:
1/4"
Front to rear beam adjustment:
1/2"
Subcategory:
Brakes
Subcategory 2:
Box & pan

Description

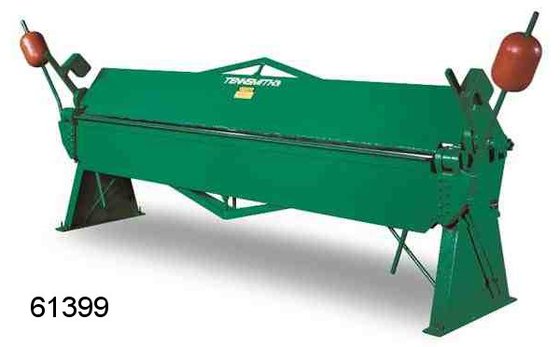

TENNSMITH (NEW) MODEL HB121-18 HEAVY-DUTY
HAND BRAKE
CAPACITY, MILD STEEL ............... 18 GAUGE
BENDING LENGTH ..................... 121"
MAXIMUM LIFT OF BEAM ............... 1-7/8"
FRONT TO REAR BEAM ADJUSTMENT ...... 1/2"
MINIMUM REVERSE BEND ............... 1/4"
MINIMUM FLANGE IN CAPACITY MATERIAL 1"
FEATURES INCLUDE:
- WELDED STEEL PLATE CONSTRUCTION
- HEAVY TRUSS RODS AND BRACES
- RIGIDITY REQUIRED FOR UPPER BEAM ADJUSTMENT
WITHOUT THE USE OF WRENCHES
- THRUST BEARINGS
- UPPER LEAF ADJUSTMENT SCREWS PERMIT QUICK,
ACCURATE ALIGNMENT FOR DIFFERENT MATERIAL
THICKNESSES AND RADII
- LEVELING SCREWS & LOCK NUTS ON THE PEDESTAL
- JACK SCREWS & TENSIONER BOLTS ON THE APRON
- TRUSS RODS ON THE APRON, BASE & UPPER BEAM
- FULLY ADJUSTABLE COUNTER BALANCES TO
FACILITATE THE BENDING PROCESS
- REPLACEABLE NOSE BAR AND APRON INSERTS
- REMOVEABLE APRON ANGLE AND INSERT PERMIT
1/4" REVERSE BENDS IN LIGHTER MATERIAL
- BORED IN LINE TO ENSURE PERFECT ALIGNMENT,
THE PIVOT POINTS ARE FITTED WITH OIL-
IMPREGNATED BEARINGS
- HINGE PINS ARE HIGH-TENSILE, ALLOY STEEL
- DUCTILE STEEL CLAMP HANDLES, HEAVY YOKES,
GREASE FITTINGS AND AN APRON STOP ROD
COMPLEMENT THE MANY OTHER FINE FEATURES OF
THESE HEAVY DUTY BRAKES
