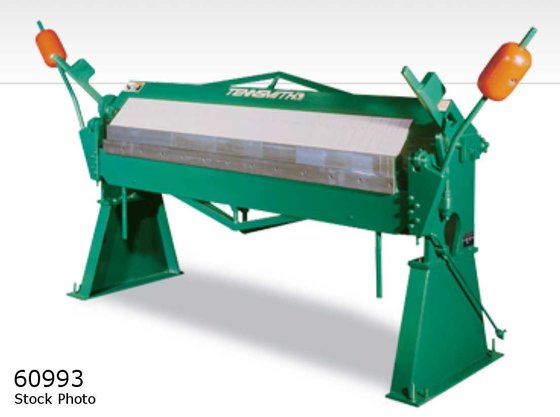

TENNSMITH HBT72-16 BRAKES in Dodge
Location:
Dodge Center, MN
Manufacturer:
TENNSMITH
Model:
HBT72-16
Capacity:
16 GA

Specifications

Condition:
used
Stock number:
060993
Condition 2:
new
Bending length:
72"
Available options:
RADIUS FINGERS
Maximum depth of box:
4"
Maximum lift of beam:
1-1/2"
Minimum reverse bend:
5/8"
Through tooling centers:
2"
At either end of machine:
3"
Rated capacity, mild steel:
16 GA
Top segment tooling widths:
2" 3" 4"
Front to rear beam ajustment:
1/2"
Lower segment tooling widths:
1" 1.5"
Bending beam tooling segments:
1" 1.5"
Subcategory:
Brakes
Subcategory 2:
Box & pan

Description

TENNSMITH (NEW) MODEL HBT72-16 HEAVY-DUTY
HAND BRAKE
RATED CAPACITY, MILD STEEL ........... 16 GA
- WITH BENDING SUPPORT ANGLE REMOVED 20 GA
BENDING LENGTH ....................... 72"
MAXIMUM LIFT OF BEAM ................. 1-1/2"
FRONT TO REAR BEAM AJUSTMENT ......... 1/2"
MAXIMUM DEPTH OF BOX ................. 4"
MINIMUM REVERSE BEND ................. 5/8"
MINIMUM FLANGE IN CAPACITY MATERIAL .. 1"
TOP SEGMENT TOOLING WIDTHS ......... 2" 3" 4"
LOWER SEGMENT TOOLING WIDTHS ....... 1" 1.5"
........................ 4" 6" 8" 12" 20"
BENDING BEAM TOOLING SEGMENTS ...... 1" 1.5"
........................ 4" 6" 8" 12" 20"
MAXIMUM TRANSVERSE BEND:
- THROUGH TOOLING CENTERS ........... 2"
- AT EITHER END OF MACHINE .......... 3"
FEATURES:
- DESIGNED TO PROVIDE FORMING CAPABILITIES
FOR COMPLEX PARTS
- ALLOWS FOR REMOVAL OF BOTH UPPER AND LOWER
SEGMENTS OF FINGERS
- EASY FORMING OF COMPLEX PARTS, SUCH AS HVAC
TRANSVERSE DUCT FORMING AND DOWN FLANGED
PARTS, AS WELL AS ARCHITECTURAL SHEET METAL
AND SIGNAGE APPLICATIONS
AVAILABLE OPTIONS: RADIUS FINGERS
