TENNSMITH BRAKES in Dodge Center,
Location:
Dodge Center, MN
Price:
$4,595 USD
Manufacturer:
TENNSMITH
Model:
HBU72-16
Capacity:
16 GAUGE

Specifications

Condition:
new
Stock number:
061201
Finger widths:
2" 3" 4"
Bending length:
72"
Capacity, mild steel:
16 GAUGE
Maximum depth of box:
4"
Maximum lift of beam:
1-1/2"
Minimum reverse bend:
1/4"
Capacity, stainless steel:
20 GAUGE
Front to rear beam adjustment:
1"
Subcategory:
Brakes
Subcategory 2:
Box & pan

Description

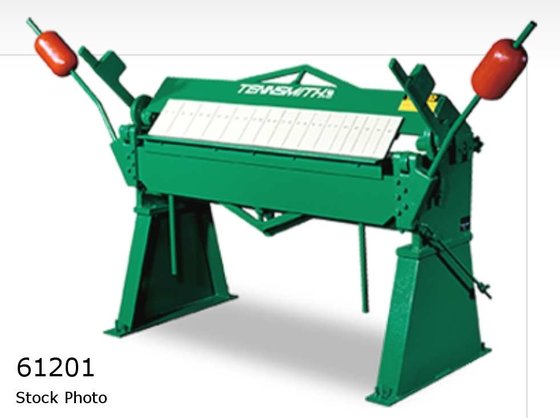

TENNSMITH (NEW) MODEL HBU72-16 HEAVY-DUTY
BOX & PAN HAND BRAKE
CAPACITY, MILD STEEL ............... 16 GAUGE
CAPACITY, STAINLESS STEEL .......... 20 GAUGE
BENDING LENGTH ..................... 72"
MAXIMUM LIFT OF BEAM ............... 1-1/2"
FRONT TO REAR BEAM ADJUSTMENT ...... 1"
MAXIMUM DEPTH OF BOX ............... 4"
MINIMUM REVERSE BEND ............... 1/4"
MINIMUM FLANGE IN CAPACITY MATERIAL 1"
FINGER WIDTHS ...................... 2" 3" 4"
FEATURES INCLUDE:
- IDEAL FOR BOTH BOX & PAN AND STRAIGHT BEND-
ING IN HOT AND COLD ROLLED PLATE, STAINLESS
STEEL, ALUMINUM AND HEAVY PLASTIC
- AMPLE CLAMPING AND NOSE BAR ADJUSTMENTS
- WELDED STEEL PLATE CONSTRUCTION
- HEAVY TRUSS RODS AND BRACES
- REMOVABLE APRON INSERT FOR 1/4" BENDS IN
LIGHTER MATERIAL
- UPPER LEAF ADJUSTMENT SCREWS FEATURE THRUST
BEARINGS TO PREVENT UPPER BEAM CREEP
- DUCTILE STEEL CLAMP HANDLES, HEAVY COUNTER-
WEIGHTS AND AN APRON STOP ROD ADD TO THE
BRAKE'S EASE OF OPERATION
- REMOVABLE FINGERS ARE CASE HARDENED FOR
LONG SERVICE
