Location:
Dodge Center, MN, USA
Manufacturer:
Bystronic
Model:
XACT 160 - 122" BENDING

Specifications

Condition:
new
Stock number:
061780
Subcategory:
Brakes
Subcategory 2:
Hydraulic & cnc

Description

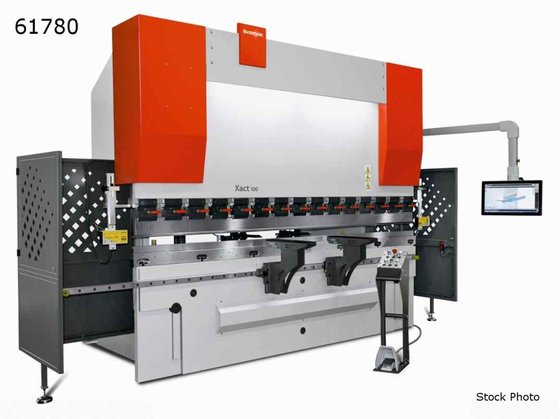

BYSTRONIC (NEW) XACT 160 CNC PRESS BRAKE
TONNAGE ...................... 163 TONS
BENDING LENGTH ............... 122"
STANDARD STROKE .............. 7.9"
OPEN HEIGHT .................. 18"
DISTANCE BETWEEN SIDE FRAMES . 100"
THROAT ....................... 15.75"
WORKING HEIGHT ............... 35"
MAXIMUM BACKGAUGE RANGE IN X . 23.6"
X-AXIS TRAVEL ................ 23.6"
X-AXIS SPEED ................. 15.75"/SECOND
X-AXIS POSITIONING ACCURACY .. +/- 0.004"
R-AXIS TRAVEL ................ + 4"/-2"
R-AXIS SPEED ................. 4"/SECOND
R-AXIS POSITIONING ACCURACY .. +/- 0.004"
Y APPROACH SPEED ............. >/= 4"/SECOND
Y WORKING SPEED .............. 0.386"/SECOND
Y RETURN SPEED ............... 3.7"/SECOND
Y POSITIONING ACCURACY ....... 0.0004"
HYDRAULIC CROWNING ........... HYDRAULIC
MOVEABLE FRONT WORKPC SUPPORTS 25.6"
- NUMBER ..................... 2
MOTOR POWER .................. 20 HP
VOLTAGE ...................... 3 X 480 V
HERTZ ........................ 50/60 HZ
OIL CAPACITY .....
