BYSTRONIC BRAKES in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Bystronic
Model:
XPERT 200 X 4100
Capacity:
105.7 GAL

Specifications

Condition:
new
Stock number:
061747
Speed:
354"/MIN
Throat:
15.75"
Travel:
24"
Tonnage:
200 TONS
Daylight:
19.68"
Ram speed:
425"/MIN
Oil capacity:
105.7 GAL
Traverse path:
9.84"
Bending length:
161"
Traverse speed:
1181"/MIN
Electric supply:
24.8 HP
Standard stroke:
8.5"
Back gauge range:
41"
Ram return speed:
354"/MIN
Ram bending speed:
23.6"/MIN
Or ascl i installed:
18.5"
Positioning accuracy:
+/- 0.0008"
Positioning accuracy 2:
+/- 0.004"
Ram positioning accuracy:
0.00016"
Subcategory:
Brakes
Subcategory 2:
Hydraulic & cnc

Description

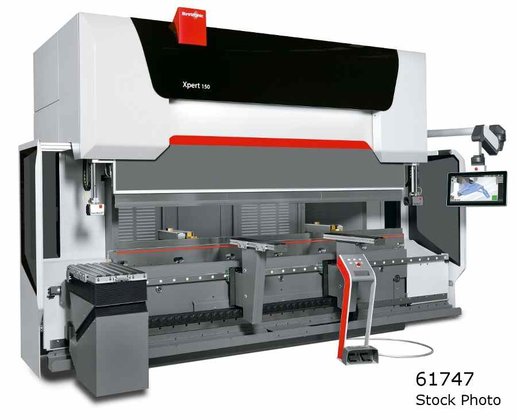

BYSTRONIC (NEW) XPERT 200 X 4100 HYDRAULIC
PRESS BRAKE
TONNAGE ........................ 200 TONS
BENDING LENGTH ................. 161"
STANDARD STROKE ................ 8.5"
DAYLIGHT* ...................... 19.68"
DAYLIGHT WITH WILA NSCL II
OR ASCL I INSTALLED .......... 18.5"
*DAYLIGHT INCLUDES UPPER CLAMPING BUT
NOT THE LOWER DIE HOLDER
DISTANCE BETWEEN SIDE FRAMES ... 147"
THROAT ......................... 15.75"
X-AXIS:
TRAVEL ....................... 24"
BACK GAUGE RANGE ............. 41"
TRAVERSE SPEED ............... 1181"/MIN
POSITIONING ACCURACY ......... +/- 0.0008"
R-AXIS:
TRAVERSE PATH ................ 9.84"
SPEED ........................ 354"/MIN
POSITIONING ACCURACY ......... +/- 0.004"
Y-AXIS:
RAM SPEED .................... 425"/MIN
RAM BENDING SPEED ............ 23.6"/MIN
RAM SPEED-ROBOT OPERATION .... 28.3"/MIN
RAM RETURN SPEED ............. 354"/MIN
RAM POSITIONING ACCURACY ..... 0.00016"
ELECTRIC SUPPLY ................ 24.8 HP
OIL CAPACITY ................... 105.7 GAL
TO SEE A VIDEO OF THIS MACHINE, CLICK ON:
