Top Seller
BYSTRONIC BRAKES in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Bystronic
Model:
XPERT 150 X 3100 HYD
Capacity:
79 GAL

Specifications

Condition:
new
Stock number:
061736
Speed:
1536"/MIN
Throat:
15.8"
Travel:
23.7"
Speed 2:
473"/MIN
Speed 3:
3544"/MIN
Tonnage:
165 TONS
Travel 2:
9.9"
Open height:
19.7"
Oil capacity:
79 GAL
Return speed:
355"/MIN
Working speed:
24"/MIN
Bending length:
122.1"
Electric supply:
8.3 HP
Standard stroke:
8.5"
Back gauge range:
41.4"
Position accuracy:
+/- 0.0008"
Max approach speed:
591"/MIN
Position accuracy 2:
+/- 0.004"
Position accuracy 3:
0.00016"
Subcategory:
Brakes
Subcategory 2:
Hydraulic & cnc

Description

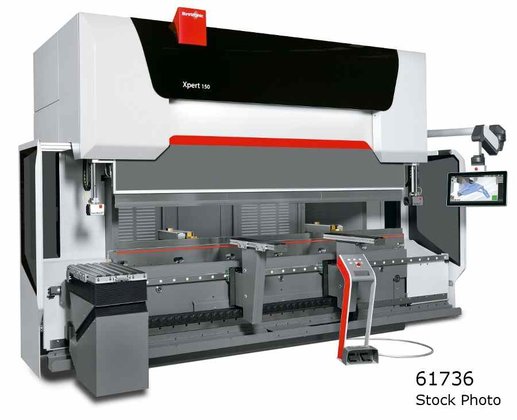

BYSTRONIC (NEW) XPERT 150 X 3100 HYDRAULIC
PRESS BRAKE
TONNAGE ......................... 165 TONS
BENDING LENGTH .................. 122.1"
STANDARD STROKE ................. 8.5"
OPEN HEIGHT ..................... 19.7"
DISTANCE BETWEEN SIDE FRAMES .... 108.3"
THROAT .......................... 15.8"
X-AXIS:
TRAVEL ........................ 23.7"
BACK GAUGE RANGE .............. 41.4"
SPEED ......................... 1536"/MIN
POSITION ACCURACY ............. +/- 0.0008"
R-AXIS:
TRAVEL ........................ 9.9"
SPEED ......................... 473"/MIN
POSITION ACCURACY ............. +/- 0.004"
Y-AXIS:
MAX APPROACH SPEED ............ 591"/MIN
WORKING SPEED ................. 24"/MIN
WORKING SPEED-ROBOT OPERATION . 24"/MIN
RETURN SPEED .................. 355"/MIN
POSITION ACCURACY ............. 0.00016"
Z-AXIS:
SPEED ......................... 3544"/MIN
POSITION ACCURACY ............. +/- 0.004"
ELECTRIC SUPPLY ................. 8.3 HP
OIL CAPACITY .................... 79 GAL
