Location:
Dodge Center, MN, USA
Manufacturer:
Bystronic
Model:
XPERT 320 X 4100 HYD

Specifications

Condition:
new
Stock number:
061737
Subcategory:
Brakes
Subcategory 2:
Hydraulic & cnc

Description

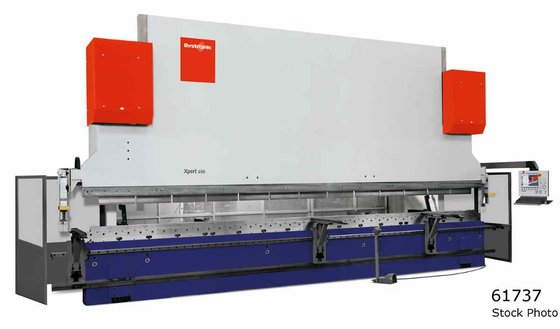

BYSTRONIC (NEW) XPERT 320 X 4100 HYDRAULIC
PRESS BRAKE
TONNAGE ........................ 352 TONS
BENDING LENGTH ................. 161"
STANDARD STROKE ................ 10.4"
DAYLIGHT* ...................... 21.65"
DAYLIGHT WITH WILA NSCL II
OR ASCL I INSTALLED .......... 20.47"
*DAYLIGHT INCLUDES UPPER CLAMPING BUT
NOT THE LOWER DIE HOLDER
DISTANCE BETWEEN SIDE FRAMES ... 147"
THROAT ......................... 15.75"
X-AXIS:
TRAVEL ....................... 24"
BACK GAUGE RANGE ............. 41"
TRAVERSE SPEED ............... 1181"/MIN
POSITIONING ACCURACY ......... +/- 0.0008"
R-AXIS:
TRAVERSE PATH ................ 9.84"
SPEED ........................ 354"/MIN
POSITIONING ACCURACY ......... +/- 0.004"
Y-AXIS:
RAM SPEED .................... 425"/MIN
RAM BENDING SPEED ............ 23.6"/MIN
RAM SPEED-ROBOT OPERATION .... 28.3"/MIN
RAM RETURN SPEED ............. 354"/MIN
RAM POSITIONING ACCURACY ..... 0.00016"
ELECTRIC SUPPLY ................ 40.2 HP
OIL CAPACITY ................... 161.
