HURCO BRAKES in Dodge Center,
Location:
Dodge Center, MN
Price:
$18,568 USD
Manufacturer:
Hurco
Model:
AB7 S7 BACK GAUGE
Weight:
230 LBS

Specifications

Condition:
new
Stock number:
061802
Gauge speed:
800 IPM
Gauge travel:
24"
Casting weight:
230 LBS
Number of jobs:
600
Number of bends:
2400
Guide rod diameter:
1-1/4"
Power requirements:
115/230 VAC
Gauge holding force:
200 LBS
Gauge repeatability:
+/- 0.002"
Vertical adjustment:
10"
Horizontal adjustment:
12"
Tool libraries - dies:
45
Gauge bar length up to:
8'
Cincinnatti press brake:
$ 5,278.00
Gauge position accuracy:
+/- 0.003"
Gauge uprights diameter:
2"
Charge for 2 axis system:
$4,350.00
Tool libraries - punches:
45
Angle resolution - 2 axis:
0.1 DEGREE
Distance between uprights:
34.5"
Subcategory:
Brakes
Subcategory 2:
Tooling & accessories

Description

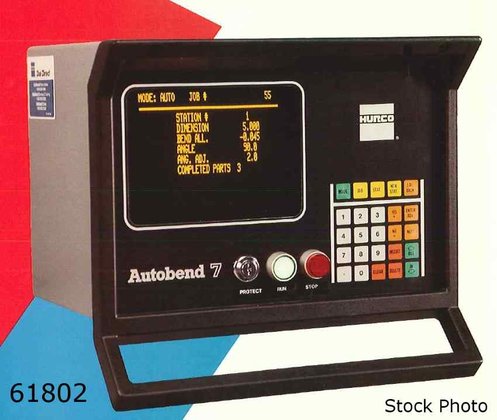

NEW HURCO AB7 S7 SINGLE AXIS CONTROL & BACK
GAUGE
CONTROL:
NUMBER OF JOBS .................. 600
NUMBER OF BENDS ................. 2400
TOOL LIBRARIES - PUNCHES ........ 45
TOOL LIBRARIES - DIES ........... 45
DIMENSION RESOLUTIONS-ELECTRONIC 0.001"
ANGLE RESOLUTION - 2 AXIS ....... 0.1 DEGREE
ANGLE RANGE - INCLUDED ANGLES ... 14-180 DEG
AUTOBEND S7 REAR GAUGE:
GAUGE BAR LENGTH up to .......... 8'
GAUGE TRAVEL .................... 24"
VERTICAL ADJUSTMENT ............. 10"
HORIZONTAL ADJUSTMENT ........... 12"
GAUGE SPEED ..................... 800 IPM
GAUGE POSITION ACCURACY ......... +/- 0.003"
GAUGE REPEATABILITY ............. +/- 0.002"
GAUGE HOLDING FORCE ............. 200 LBS
CASTING WEIGHT .................. 230 LBS
GUIDE ROD DIAMETER .............. 1-1/4"
GAUGE UPRIGHTS DIAMETER ......... 2"
DISTANCE BETWEEN UPRIGHTS ....... 34.5"
POWER REQUIREMENTS .............. 115/230 VAC
+/- 10% 50/60 HZ
HEAVY-DUTY CROSS-RIBBED CAST ALUMINUM FRAME
Optional Y axis control for
ram depth positioning on
Cincinnatti Press Brake ..........$ 5,278.00
Factory recomended intallation
charge for 2 axis system .........$4,350.00
