Top Seller
HURCO BRAKES in Dodge Center,
Location:
Dodge Center, MN
Price:
$16,958 USD
Manufacturer:
Hurco
Model:
AB7 S6 BACK GAUGE
Weight:
200 LBS

Specifications

Condition:
new
Stock number:
060556
Gauge speed:
800 IPM
Gauge travel:
24"
Casting weight:
200 LBS
Number of jobs:
600
Number of bends:
2400
Gauge bar length:
UP TO 8'
Guide rod diameter:
1-1/4"
Power requirements:
115/230 VAC
Gauge holding force:
200 LBS
Gauge repeatability:
+/- 0.002"
Vertical adjustment:
10"
Horizontal adjustment:
9"
Tool libraries - dies:
45
Gauge position accuracy:
+/- 0.003"
Gauge uprights diameter:
2"
Tool libraries - punches:
45
Angle resolution - 2 axis:
0.1 DEGREE
Distance between uprights:
17.5"
Subcategory:
Brakes
Subcategory 2:
Tooling & accessories

Description

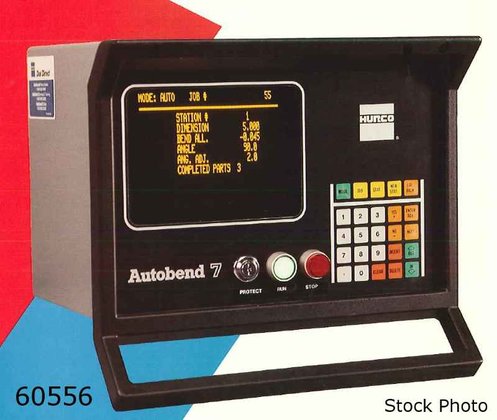

NEW HURCO AB7 S6 SINGLE AXIS CONTROL & BACK
GAUGE
CONTROL:
NUMBER OF JOBS .................. 600
NUMBER OF BENDS ................. 2400
TOOL LIBRARIES - PUNCHES ........ 45
TOOL LIBRARIES - DIES ........... 45
DIMENSION RESOLUTIONS-ELECTRONIC 0.001"
ANGLE RESOLUTION - 2 AXIS ....... 0.1 DEGREE
ANGLE RANGE - INCLUDED ANGLES ... 14-180 DEG
AUTOBEND S6 REAR GAUGE:
GAUGE BAR LENGTH ................ UP TO 8'
GAUGE TRAVEL .................... 24"
VERTICAL ADJUSTMENT ............. 10"
HORIZONTAL ADJUSTMENT ........... 9"
GAUGE SPEED ..................... 800 IPM
GAUGE POSITION ACCURACY ......... +/- 0.003"
GAUGE REPEATABILITY ............. +/- 0.002"
GAUGE HOLDING FORCE ............. 200 LBS
CASTING WEIGHT .................. 200 LBS
GUIDE ROD DIAMETER .............. 1-1/4"
GAUGE UPRIGHTS DIAMETER ......... 2"
DISTANCE BETWEEN UPRIGHTS ....... 17.5"
POWER REQUIREMENTS .............. 115/230 VAC
+/- 10% 50/60 HZ
HEAVY-DUTY CROSS-RIBBED CAST ALUMINUM FRAME
