Top Seller
JET CRANES in Dodge Center,
Location:
Dodge Center, MN
Price:
$3,480 USD
Manufacturer:
JET Tools cranes
Model:
111500 1SS-1C-15
Capacity:
1 TON

Specifications

Condition:
new
Stock number:
061892
Capacity:
1 TON
Headroom:
24-7/16"
Duty cycle:
25%
Motor output:
1-3/4 HP
Lifting speed:
19.7 FPM
Standard lift:
15'
Number of falls:
1
Duty cycle rating:
H3
Rated amps at 115 v:
20.8
Rated amps at 230 v:
10
Load chain dimensions:
8 X 24 MM
Subcategory:
Hoists

Description

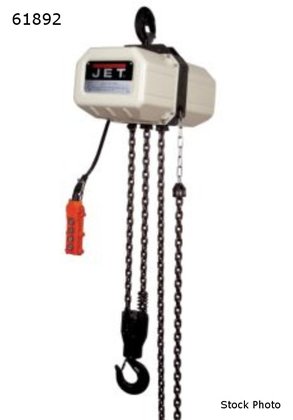

JET (NEW) MODEL 111500 1SS-1C-15 ELECTRIC
CHAIN HOIST
CAPACITY ......................... 1 TON
STANDARD LIFT .................... 15'
HEADROOM ......................... 24-7/16"
PUSH BUTTON CONTROL CORD LENGTH .. 13'
DUTY CYCLE ....................... 25%
DUTY CYCLE RATING ................ H3
LIFTING SPEED .................... 19.7 FPM
MOTOR OUTPUT ..................... 1-3/4 HP
RATED AMPS AT 115 V .............. 20.8
RATED AMPS AT 230 V .............. 10
LOAD CHAIN DIMENSIONS ............ 8 X 24 MM
NUMBER OF FALLS .................. 1
FEATURES:
OVERLOAD PROTECTION - SLIP CLUTCH DESIGN
PREVENTS LIFTING LOADS ABOVE RATED CAPACITY
THERMAL OVERLOAD PROTECTION - PREVENTS
OVERHEATING IN LOW VOLTAGE SITUATIONS
DC ELECTRO-MAGNETIC BRAKE - SECURES THE LOAD
IF POWER IS INTERRUPTED
LIMIT SWITCHES - UPPER AND LOWER - PREVENT
OVER TRAVELING OF LOAD CHAIN
SEALED GEAR TRAIN WITH A SEALED OIL BATH
GRADE 80 LOAD CHAIN COATED WITH BLACK OXIDE
CONTROL PENDANT - 24 V PUSH BUTTON CONTROLLER
WITH CABLE RELIEF SYSTEM
ALL STEEL CONSTRUCTION - FULLY ENCLOSED
COMPLIES WITH OSHA REGULATIONS, ANSI/ASME
B30.16 AND HST-1 STANDARDS
CERTIFICATION - LOAD TESTED TO 125% CAPACITY
CONTROLS - NEMA 4X COMPLIANT PUSH BUTTON
CONTROL PENDANTS
