Top Seller
JET DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$1,149 USD
Manufacturer:
JET
Model:
354170 JDP-20MF PRES
Capacity:
80 LBS
Weight:
80 LBS

Specifications

Condition:
new
Stock number:
061894
Motor:
1.5 HP, 1 PH
Table size:
18.5" X 16"
Table travel:
21.5"
Spindle taper:
MT-3
Spindle speeds:
12
Spindle travel:
4-5/8"
T-slot centers:
3-1/2"
T-slots - size:
1/2"
Base dimensions:
13.75" X 22.75"
Base work table:
13" X 8.5"
Column diameter:
3-3/8"
T-slots - number:
6
Base slots - size:
5/8"
Column to spindle:
10"
Base slots - number:
2
Spindle speed range:
150-4200 RPM
Spindle distance to base:
46-3/4"
Spindle distance to table:
29-1/8"
Volts - prewired at 115 v:
115/230 V
Drills to center of circle:
20"
Work table weight capacity:
80 LBS
Subcategory:
Drills
Subcategory 2:
Single spindle

Description

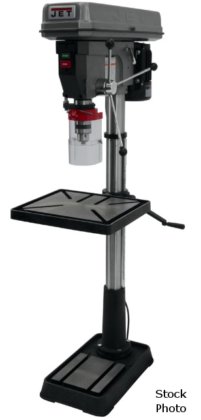

JET (NEW) MODEL JDP-20MF FLOOR DRILL PRESS
DRILLS TO CENTER OF CIRCLE ..... 20"
DRILLING CAPACITY - CAST IRON .. 1"
DRILLING CAPACITY - MILD STEEL . 3/4"
COLUMN TO SPINDLE .............. 10"
COLUMN DIAMETER ................ 3-3/8"
SPINDLE TRAVEL ................. 4-5/8"
SPINDLE TAPER .................. MT-3
SPINDLE SPEEDS ................. 12
SPINDLE SPEED RANGE ............ 150-4200 RPM
SPINDLE DISTANCE TO BASE ....... 46-3/4"
SPINDLE DISTANCE TO TABLE ...... 29-1/8"
TABLE SIZE ..................... 18.5" X 16"
TABLE TRAVEL ................... 21.5"
T-SLOTS - NUMBER ............... 6
T-SLOTS - SIZE ................. 1/2"
T-SLOT CENTERS ................. 3-1/2"
WORK TABLE WEIGHT CAPACITY ..... 80 LBS
BASE DIMENSIONS ..........13.75" X 22.75"
BASE WORK TABLE ................ 13" X 8.5"
BASE SLOTS - NUMBER ............ 2
BASE SLOTS - SIZE .............. 5/8"
MOTOR .......................... 1.5 HP, 1 PH
VOLTS - PREWIRED AT 115 V ...... 115/230 V
FEATURES:
RAPID CHANGING OF SPINDLE SPEEDS DUE TO
HINGED METAL BELT & PULLEY COVER AND QUICK
ADJUSTMENT MOTOR MOUNT
ROTATING 45 DEGREE TILTING, CRANK-OPERATED
WORKTABLE WITH QUICK RELEASE CLAMP
1/2" DIAMETER EXTERNAL POSITIVE DEPTH STOP
ADJUSTABLE TENSION SPINDLE RETURN SPRING
HIGH-QUALITY BALL BEARINGS SUPPORT SPINDLE
BUILT-IN WORK LAMP (BULB NOT INCLUDED)
DRILL CHUCK AND KEY INCLUDED
