Top Seller
JET DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$6,499 USD
Manufacturer:
JET
Model:
354031 J-A2608M-PF4
Capacity:
350 LB
Weight:
350 LB

Specifications

Condition:
new
Stock number:
061870
Low:
130, 260, 420, 840 RPM
High:
535, 1070, 1745, 3480 RPM
Motor:
1 TO 1-1/2 HP, 3 PH, 440 V
Table size:
15-3/4" X 19-3/4"
Table travel:
24-1/2"
Spindle taper:
MT-3
Spindle travel:
5-1/8"
Column diameter:
3-15/16"
T-slot number & size:
2 X 9/16"
Spindle distance to base:
44"
Spindle distance to table:
35-5/8"
Drills to center of circle:
20"
Work table weight capacity:
350 LB
Distance - column to spindle:
10"
Tapping capacity - cast iron:
5/8"
Drilling capacity - cast iron:
1-3/8"
Tapping capacity - mild steel:
1/2"
Subcategory:
Drills
Subcategory 2:
Single spindle

Description

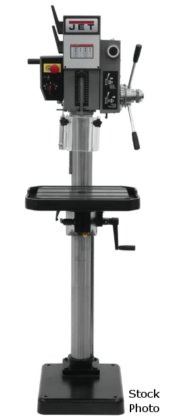

JET (NEW) MODEL 354031 J-A2608M-PF4 20"
ARBOGA GEAR HEAD DRILL PRESS WITH POWERFEED
DRILLS TO CENTER OF CIRCLE ........ 20"
DRILLING CAPACITY - MILD STEEL .... 1-1/4"
DRILLING CAPACITY - CAST IRON...... 1-3/8"
TAPPING CAPACITY - MILD STEEL...... 1/2"
TAPPING CAPACITY - CAST IRON ...... 5/8"
COLUMN DIAMETER ................... 3-15/16"
DISTANCE - COLUMN TO SPINDLE ...... 10"
RANGE OF SPINDLE SPEEDS:
LOW ................ 130, 260, 420, 840 RPM
HIGH ............ 535, 1070, 1745, 3480 RPM
SPINDLE TAPER ..................... MT-3
SPINDLE TRAVEL .................... 5-1/8"
SPINDLE DISTANCE TO BASE .......... 44"
SPINDLE DISTANCE TO TABLE ......... 35-5/8"
TABLE SIZE ................ 15-3/4" X 19-3/4"
T-SLOT NUMBER & SIZE .............. 2 X 9/16"
WORK TABLE WEIGHT CAPACITY ........ 350 LB
TABLE TRAVEL ...................... 24-1/2"
MOTOR ............ 1 TO 1-1/2 HP, 3 PH, 440 V
FEATURES:
HELICAL GEARS FOR SMOOTH, QUIET OPERATION
QUICK RELEASE DRILL EJECTOR
SAFETY LATCH TO PREVENT HEAD DROPPING WHEN
UNCLAMPED
8 SPINDLE SPEEDS
T-SLOTTED TABLE WITH COOLANT TROUGH
HEAD AND TABLE ROTATE 360 DEG AROUND COLUMN
2 POSITION HIGH/LOW SWITCH
ENGLISH/METRIC DEPTH GAUGE
