Top Seller
BAILEIGH DP-1250VS DRILLS in Dodge
Location:
Dodge Center, MN
Manufacturer:
Baileigh
Model:
DP-1250VS
Capacity:
3/4"

Specifications

Condition:
used
Stock number:
061836
Main:
2 HP
Swing:
20.8"
Taper:
MT4
Travel:
5.9"
Coolant:
1/8 HP
Mild steel:
1.5"
Table slot:
0.625"
Condition 2:
new
Speed - low:
85-540 RPM
Nose to base:
48.22"
Speed - high:
245-2000 RPM
Nose to table:
36.41"
Quill diameter:
2.95"
Base dimensions:
27" X 19"
Column diameter:
4.52"
Tapping capacity:
3/4"
Power requirements:
220V/1-PHASE
Table dimensions (l x w):
22" X 18.5"
Subcategory:
Drills
Subcategory 2:
Single spindle

Description

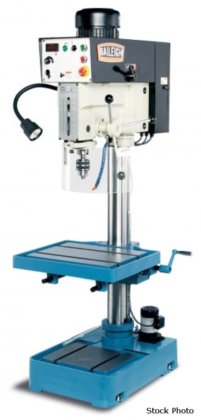

BAILEIGH (NEW) MODEL DP-1250VS DRILL PRESS
DRILL CAPACITY
MILD STEEL ................... 1.5"
TAPPING CAPACITY ............. 3/4"
SPINDLE
SPEED - HIGH ................. 245-2000 RPM
SPEED - LOW .................. 85-540 RPM
SWING ........................ 20.8"
TAPER ........................ MT4
TRAVEL ....................... 5.9"
NOSE TO TABLE ................ 36.41"
NOSE TO BASE ................. 48.22"
QUILL DIAMETER ................. 2.95"
COLUMN DIAMETER ................ 4.52"
TABLE DIMENSIONS (L X W) ....... 22" X 18.5"
TABLE SLOT ..................... 0.625"
BASE DIMENSIONS ................ 27" X 19"
MOTOR
MAIN ......................... 2 HP
COOLANT ...................... 1/8 HP
POWER REQUIREMENTS ............. 220V/1-PHASE
VARIABLE-SPEED INVERTER-DRIVEN HEAD
DIGITAL RPM READOUT
INTEGRATED COOLANT SYSTEM
DRILL CHUCK
