Top Seller
BAILEIGH DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$4,795 USD
Manufacturer:
Baileigh
Model:
DP-1500VS
Capacity:
0.937"

Specifications

Condition:
new
Stock number:
061715
Main:
2 HP
Taper:
MT4
Travel:
5.9"
Coolant:
1/8 HP
Cast iron:
1.75"
Mild steel:
1.5"
Table slot:
0.625"
Speed - low:
85-540 RPM
Nose to base:
40.75"
Speed - high:
245-2000 RPM
Nose to table:
22.75"
Quill diameter:
2.95"
Base dimensions:
27" X 19"
Column diameter:
4.52"
Tapping capacity:
0.937"
Power requirements:
220V/1-PHASE
Table dimensions (l x w):
22" X 18.5"
Subcategory:
Drills
Subcategory 2:
Single spindle

Description

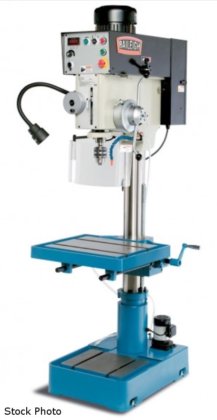

BAILEIGH (NEW) MODEL DP-1500VS DRILL PRESS
DRILL CAPACITY
MILD STEEL ................... 1.5"
CAST IRON .................... 1.75"
TAPPING CAPACITY ............... 0.937"
SPINDLE
SPEED - HIGH ................. 245-2000 RPM
SPEED - LOW .................. 85-540 RPM
TAPER ........................ MT4
TRAVEL ....................... 5.9"
NOSE TO TABLE ................ 22.75"
NOSE TO BASE ................. 40.75"
QUILL DIAMETER ................. 2.95"
QUILL FEED (3 SPEEDS) PER REV .. 0.0078"
..................... 0.004" 0.002"
COLUMN DIAMETER ................ 4.52"
TABLE DIMENSIONS (L X W) ....... 22" X 18.5"
TABLE SLOT ..................... 0.625"
BASE DIMENSIONS ................ 27" X 19"
MOTOR
MAIN ......................... 2 HP
COOLANT ...................... 1/8 HP
POWER REQUIREMENTS ............. 220V/1-PHASE
VARIABLE-SPEED INVERTER-DRIVEN HEAD
3-SPEED POWER DOWN FEED
AUTO REVERSE TAPPING FEATURE
DIGITAL RPM READOUT
INTEGRATED COOLANT SYSTEM
DRILL CHUCK
