Top Seller
JET DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$7,999 USD
Manufacturer:
JET
Model:
354036 J-A3008M-PF2
Capacity:
450 LB
Weight:
450 LB

Specifications

Condition:
new
Stock number:
061700
Motor:
3 HP, 3 PH, 230 V
Table size:
15-3/4" X 19-3/4"
Table travel:
30"
Spindle taper:
MT-3
Spindle travel:
6"
Column diameter:
4-1/2"
T-slot number & size:
2 X 9/16"
Range of spindle speeds:
90, 190
Spindle distance to base:
45-5/8"
Spindle distance to table:
35"
Drills to center of circle:
25"
Work table weight capacity:
450 LB
Distance - column to spindle:
12-5/8"
Tapping capacity - cast iron:
3/4"
Drilling capacity - cast iron:
1-3/16"
Tapping capacity - mild steel:
5/8"
Subcategory:
Drills
Subcategory 2:
Single spindle

Description

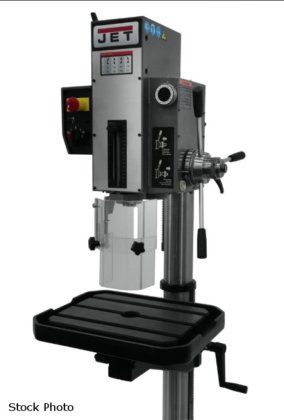

JET (NEW) MODEL 354036 J-A300M-PF2 26" ARBOGA
GEAR HEAD DRILL PRESS WITH POWER DOWNFEED
DRILLS TO CENTER OF CIRCLE ........ 25"
DRILLING CAPACITY - MILD STEEL .... 1-1/4"
DRILLING CAPACITY - CAST IRON...... 1-3/16"
TAPPING CAPACITY - MILD STEEL...... 5/8"
TAPPING CAPACITY - CAST IRON ...... 3/4"
COLUMN DIAMETER ................... 4-1/2"
DISTANCE - COLUMN TO SPINDLE ...... 12-5/8"
RANGE OF SPINDLE SPEEDS ........... 90, 190
...... 320, 530, 640, 1060, 1790, 3610 RPM
SPINDLE TAPER ..................... MT-3
SPINDLE TRAVEL .................... 6"
SPINDLE DISTANCE TO BASE .......... 45-5/8"
SPINDLE DISTANCE TO TABLE ......... 35"
TABLE SIZE ................ 15-3/4" X 19-3/4"
T-SLOT NUMBER & SIZE .............. 2 X 9/16"
WORK TABLE WEIGHT CAPACITY ........ 450 LB
TABLE TRAVEL ...................... 30"
MOTOR ..................... 3 HP, 3 PH, 230 V
FEATURES:
HELICAL GEARS FOR SMOOTH, QUIET OPERATION
QUICK RELEASE DRILL EJECTOR
ENGLISH/METRIC DEPTH GAUGE
MACHINED T-SLOTTED BASE PLATE
HEAD AND TABLE ROTATE 360 DEG AROUND COLUMN
