Top Seller
JET DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$3,699 USD
Manufacturer:
JET Tools
Model:
354223 J-2223VS 20
Capacity:
1"

Specifications

Condition:
new
Stock number:
061699
Motor:
2 HP, 230/460V, 3 PHASE
Prewired:
230 VOLT
Table size:
18-1/8" X 14-3/4"
Table travel:
18"
Spindle taper:
MT-3
Quill diameter:
3"
Spindle travel:
6"
Column diameter:
4-1/2"
Base working surface:
14-3/4" X 11-3/16"
T-slots number & size:
2 & 5/8"
Range of spindle speeds:
300-2000 RPM
Steel drilling capacity:
1"
Base slots number & size:
2 & 5/8"
Drill to center of circle:
20"
Cast iron drilling capacity:
1-1/4"
Subcategory:
Drills
Subcategory 2:
Single spindle

Description

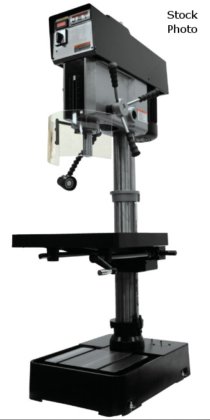

JET (NEW) MODEL 354223 J-2223VS 20" VARIABLE
SPEED DRILL PRESS
DRILL TO CENTER OF CIRCLE .......... 20"
CAST IRON DRILLING CAPACITY ........ 1-1/4"
STEEL DRILLING CAPACITY ............ 1"
COLUMN DIAMETER .................... 4-1/2"
RANGE OF SPINDLE SPEEDS ........ 300-2000 RPM
SPINDLE TRAVEL ..................... 6"
SPINDLE TAPER ...................... MT-3
QUILL DIAMETER ..................... 3"
TABLE SIZE ............... 18-1/8" X 14-3/4"
T-SLOTS NUMBER & SIZE .............. 2 & 5/8"
TABLE TRAVEL ....................... 18"
BASE WORKING SURFACE ..... 14-3/4" X 11-3/16"
BASE SLOTS NUMBER & SIZE ........... 2 & 5/8"
MOTOR .............. 2 HP, 230/460V, 3 PHASE
PREWIRED ......................... 230 VOLT
VARIABLE SPINDLE SPEEDS FROM 300 TO 2000 RPM
EXTERNAL #3 MORSE TAPER
FRONT MOUNTED POSITIVE CONTROL DEPTH STOP
MASSIVE 3" QUILL DIAMETER
HEAVY DUTY CAST IRON DESIGN
TABLE ROTATES 360 DEG AROUND COLUMN
