CLAUSING 2274 in Dodge Center,
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
Clausing

Specifications

Condition:
new
Stock number:
060109
Subcategory:
Drills
Subcategory 2:
Single spindle

Description

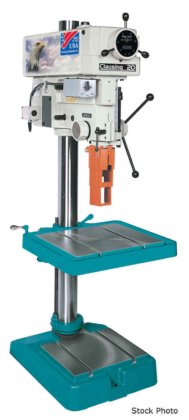

CLAUSING (NEW) MODEL 2274 20" VARIABLE SPEED
FLOOR MODEL DRILL PRESS
CAPACITY, HAND FEED ............ 1.25" DIA
DRILL TO CENTER OF CIRCLE ...... 20"
SPINDLE NOSE ................... MT3, 1.74"
SPINDLE TRAVEL ................. 6.5"
COLUMN GROUND STEEL ............ 4" DIAMETER
COLUMN WALL .................... 3/8" THICK
QUILL (GROUND STEEL) ........... 2.5"
QUILL RETURN SPRING, CAPACITY .. 40 LB
TABLE .......................... 22" X 19.5"
- T-SLOTS: 2 FOR .5" T-BOLT .... 15.5" LONG
- TRAVEL, ONE SETTING .......... 20"
- SPINDLE TO TABLE, MAXIMUM .... 33.125"
BASE ........................... 15.5" X 13"
- T-SLOTS: 2 FOR .5" T-BOLT .... 13"
- SPINDLE TO BASE, MAXIMUM ..... 43.375"
VARIABLE SPEED ................. 300-2000 RPM
MOTOR .......................... 1.5 HP, 3 PH
HEAVY-DUTY PRECISION HEAD
