CLAUSING DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$4,520 USD
Manufacturer:
Clausing
Model:
2275
Capacity:
1.25" DIA

Specifications

Condition:
new
Stock number:
060580
Base:
15.5" X 13"
Motor:
1.5 HP, 3 PH
Table:
22" X 19.5"
T-slots:
2 FOR .5" T-BOLT .... 15.5" LONG
T-slots 2:
2 FOR .5" T-BOLT .... 13"
Column wall:
3/8" THICK
Spindle nose:
MT3, 1.74"
Spindle travel:
6.5"
Variable speed:
200-1300 RPM
Capacity, hand feed:
1.25" DIA
Column ground steel:
4" DIAMETER
Travel, one setting:
20"
Quill (ground steel):
2.5"
Spindle to base, maximum:
43.375"
Drill to center of circle:
20"
Subcategory:
Drills
Subcategory 2:
Single spindle

Description

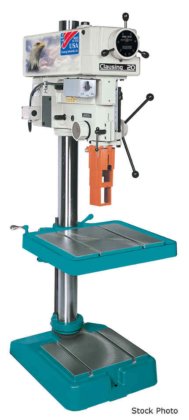

CLAUSING (NEW) MODEL 2275 20" VARIABLE SPEED
FLOOR MODEL DRILL PRESS
CAPACITY, HAND FEED ............ 1.25" DIA
DRILL TO CENTER OF CIRCLE ...... 20"
SPINDLE NOSE ................... MT3, 1.74"
SPINDLE TRAVEL ................. 6.5"
COLUMN GROUND STEEL ............ 4" DIAMETER
COLUMN WALL .................... 3/8" THICK
QUILL (GROUND STEEL) ........... 2.5"
QUILL RETURN SPRING, CAPACITY .. 40 LB
TABLE .......................... 22" X 19.5"
- T-SLOTS: 2 FOR .5" T-BOLT .... 15.5" LONG
- TRAVEL, ONE SETTING .......... 20"
- SPINDLE TO TABLE, MAXIMUM .... 33.125"
BASE ........................... 15.5" X 13"
- T-SLOTS: 2 FOR .5" T-BOLT .... 13"
- SPINDLE TO BASE, MAXIMUM ..... 43.375"
VARIABLE SPEED ................. 200-1300 RPM
MOTOR .......................... 1.5 HP, 3 PH
HEAVY-DUTY PRECISION HEAD
