ELLIS DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$3,595 USD
Manufacturer:
ELLIS
Model:
9400
Capacity:
3/4"

Specifications

Condition:
new
Stock number:
061170
Motor:
2 HP AC 1 PHASE
Morse taper:
NO. 3
Quill diameter:
3"
Spindle speeds:
0 - 1200 RPM
Spindle travel:
5-3/8"
Column diameter:
4"
Spindle to base:
46-1/4"
Drills to center:
18-1/8"
Spindle to table:
27-1/4"
Tapping capacity:
3/4"
Voltage - choose:
110/220
Options available:
PRICE ON REQUEST
Drilling capacity-steel:
1-1/16"
Subcategory:
Drills
Subcategory 2:
Single spindle

Description

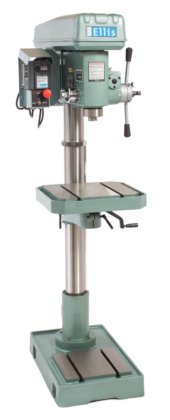

ELLIS (NEW) MODEL 9400 VARIABLE SPEED
DRILL PRESS, 20"
SPINDLE SPEEDS .............. 0 - 1200 RPM
DRILLS TO CENTER ............ 18-1/8"
DRILLING CAPACITY-STEEL ..... 1-1/16"
DRILLING CAPACITY-CAST IRON . 1-1/4"
TAPPING CAPACITY ............ 3/4"
MORSE TAPER ................. NO. 3
QUILL DIAMETER .............. 3"
COLUMN DIAMETER ............. 4"
SPINDLE TRAVEL .............. 5-3/8"
SPINDLE TO TABLE ............ 27-1/4"
SPINDLE TO BASE ............. 46-1/4"
MOTOR ....................... 2 HP AC 1 PHASE
VOLTAGE - CHOOSE ............ 110/220
CONTROL BOX:
- INFINITELY VARIABLE SPEED
- INSTANTANEOUS ELECTRONIC REVERSING
- FULL TORQUE AT LOW SPEEDS
- ALL SOLID STATE CIRCUITRY
- CONTINUOUS SPEED ADJUSTMENT WHILE OPERATING
PRODUCTION TYPE TABLE:
- T-SLOTTED 15-7/8" X 17-7/8"
- 2 SLOTS FOR 1/2" T-BOLTS
- GROUND WORKING SURFACE
- COOLANT TROUGH
BASE:
- T SLOTTED 16-3/8" X 26-5/8"
- 2 SLOTS FOR 1/2" T BOLTS
- GROUND WORKING SURFACE
FEATURES:
- TAPPING HEAD IS NOT NEEDED
- MACHINE TAP GOES INTO BALL BEARING CHUCK
- CAN TAP EITHER LEFT OR RIGHT HANDED THREADS
- DRILL HEAD AND TABLE ROTATE 360 DEGREES
- SMOOTH OPERATING TABLE RAISER
- FULLY ENCLOSED SPINDLE
- QUILL LOCK AND DEPTH CONTROL
- SAME BALL BEARING CHUCK HOLDS BOTH DRILL
AND TAP
OPTIONS AVAILABLE .......... PRICE ON REQUEST
POWER DOWN FEED .................. POR
BALL BEARING CHUCK ............... POR
DRILL PRESS VISE ................. POR
ROUND TABLE ...................... POR
