Top Seller
JET DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$4,099 USD
Manufacturer:
JET Tools
Model:
354020 GHD-20
Capacity:
1-1/2"

Specifications

Condition:
new
Stock number:
061393
Motor tefc:
2 HP 3 PH
Table size:
21-1/4 X
T-slots (2):
5/8"
Spindle taper:
MT 3
Quill diameter:
3"
T-slot centers:
9"
Column diameter:
4-1/2"
Cast drilling capacity:
1-1/2"
Steel drilling capacity:
1-1/4"
Number of spindle speeds:
12
Spindle distance to base:
44-3/8"
Spindle distance to table:
30-7/8"
Subcategory:
Drills
Subcategory 2:
Single spindle

Description

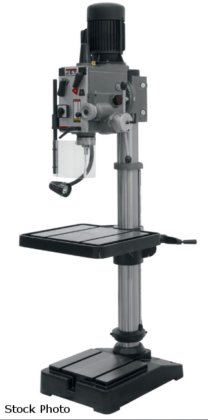

JET (NEW) MODEL 354020 GHD-20 GEARED HEAD
DRILL PRESS
DRILLS TO CENTER OF CIRCLE,,,,, 20"
CAST DRILLING CAPACITY,,,,,,,,, 1-1/2"
STEEL DRILLING CAPACITY,,,,,,,, 1-1/4"
COLUMN DIAMETER,,,,,,,,,,,,,,,, 4-1/2"
MAX DISTANCE SPINDLE TO COLUMN, 10"
SPINDLE TAPER,,,,,,,,,,,,,,,,,, MT 3
QUILL DIAMETER,,,,,,,,,,,,,,,,, 3"
SPINDLE DISTANCE TO BASE,,,,,,, 44-3/8"
SPINDLE DISTANCE TO TABLE,,,,,, 30-7/8"
TABLE SIZE,,,,,,,,,,,,,,,,,,,,, 21-1/4 X
18-1/2"
T-SLOTS (2),,,,,,,,,,,,,,,,,,,, 5/8"
T-SLOT CENTERS,,,,,,,,,,,,,,,,, 9"
NUMBER OF SPINDLE SPEEDS,,,,,,, 12
RANGE OF SPINDLE SPEEDS, LO,,,, 60 - 1500
RANGE OF SPINDLE SPEEDS, HI,,,, 120 - 3000
MOTOR TEFC,,,,,,,,,,,,,,,,,,,,, 2 HP 3 PH
230 VOLT ONLY
STANDARD EQUIPMENT:
HEAVY DUTY DESIGN ALLOWS A VARIETY OF
PRECISION DRILING APPLICATIONS
EASY TO READ INTERNAL DEPTH GAUGE
THREE POWER DOWN FEEDS
CALIBRATED FINE DOWN FEED BUILT IN
BUILT IN SPINDLE LOCK
HEAD TILTS LEFT OR RIGHT
EASY ACCESSIBLE TABLE RAISER
LARGE PRODUCTION TABLE AND T-SLOTTED BASE
T-SLOTTED WORKTABLE
DRILL CHUCK ARBOR
DRAW BAR
