Top Seller
JET DRILLS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
JET Tools
Model:
354024 GHD-20PF
Capacity:
1-1/2"

Specifications

Condition:
new
Stock number:
060706
Manual:
5
Tapping:
4-7/8"
Powerfeed:
4-1/4
Motor tefc:
2 HP 3 PH
Table size:
21-1/4 X
T-slots (2):
5/8"
Spindle taper:
MT 3
Quill diameter:
3"
T-slot centers:
6-1/4"
Column diameter:
4-1/2"
Cast iron tapping:
13/16"
Number of powerfeeds:
0.004, 0.007
Cast drilling capacity:
1-1/2"
Range of spindle speeds:
60 - 3000
Steel drilling capacity:
1-1/4"
Number of spindle speeds:
12
Spindle distance to base:
44-3/8"
Spindle distance to table:
30-7/8"
Subcategory:
Drills
Subcategory 2:
Single spindle

Description

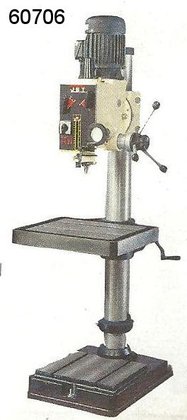

JET (NEW) MODEL 354024 GHD-20PF GEARED HEAD
DRILLING AND TAPPING PRESS, 20"
CAST DRILLING CAPACITY,,,,,,,,, 1-1/2"
CAST IRON TAPPING,,,,,,,,,,,,,, 13/16"
STEEL DRILLING CAPACITY,,,,,,,, 1-1/4"
COLUMN DIAMETER,,,,,,,,,,,,,,,, 4-1/2"
MAX DISTANCE SPINDLE TO COLUMN, 10"
SPINDLE TAPER,,,,,,,,,,,,,,,,,, MT 3
MANUAL: 5
POWERFEED: 4-1/4
TAPPING: 4-7/8"
QUILL DIAMETER,,,,,,,,,,,,,,,,, 3"
SPINDLE DISTANCE TO BASE,,,,,,, 44-3/8"
SPINDLE DISTANCE TO TABLE,,,,,, 30-7/8"
TABLE SIZE,,,,,,,,,,,,,,,,,,,,, 21-1/4 X
18-1/2"
T-SLOTS (2),,,,,,,,,,,,,,,,,,,, 5/8"
T-SLOT CENTERS,,,,,,,,,,,,,,,,, 6-1/4"
NUMBER OF SPINDLE SPEEDS,,,,,,, 12
RANGE OF SPINDLE SPEEDS,,,,,,,, 60 - 3000
NUMBER OF POWERFEEDS,,,,,,,,,,, 0.004, 0.007
0.01
MOTOR TEFC,,,,,,,,,,,,,,,,,,,,, 2 HP 3 PH
230 VOLT ONLY
STANDARD EQUIPMENT:
INTEGRATED TAPPING AND REVERSING CONTROL
T-SLOTTED WORKTABLE
DRILL CHUCK ARBOR
DRAW BAR
THREE POWER DOWN FEEDS
CALIBRATED FINE DOWN FEED BUILT IN
EASY TO READ INTERNAL DEPTH GAUGE
BUILT IN SPINDLE LOCK
HEAD TILTS LEFT OR RIGHT
EASY ACCESSIBLE TABLE RAISER
LARGE PRODUCTION TABLE AND T-SLOTTED BASE
