Top Seller
JET DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$4,899 USD
Manufacturer:
JET
Model:
354210 JDP-20EVS-230
Capacity:
20"
Weight:
230 LBS

Specifications

Condition:
new
Stock number:
061291
T-slot:
2 @ 5/8"
Main motor:
2 HP 230V 3 PH
Table size:
22 X 18-3/4"
Spindle taper:
MT 3
Rated capacity:
20"
Spindle travel:
6"
T-slot centers:
8-1/2"
Column diameter:
4-1/2"
Dist spindle to base:
44-1/4"
Table weight max lbs:
230 LBS
Dist spindle to table:
32-3/8"
Dist spindle to column:
10-7/16"
Steel tapping capacity:
3/4"
Range of spindle speeds:
65 - 2000 RPM
Steel drilling capacity:
1-3/8"
Subcategory:
Drills
Subcategory 2:
Single spindle

Description

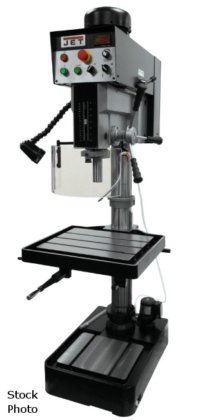

JET (NEW) M0DEL 354210 JDP-20EVS-230
ELECTRONIC VARIABLE SPEED DRILL PRESS
RATED CAPACITY,,,,,,,,,,,,,,, 20"
CAST IRON DRILLING CAPACITY,, 1-1/2"
STEEL DRILLING CAPACITY,,,,,, 1-3/8"
STEEL TAPPING CAPACITY,,,,,,, 3/4"
COLUMN DIAMETER,,,,,,,,,,,,,, 4-1/2"
DIST SPINDLE TO COLUMN,,,,,,, 10-7/16"
SPINDLE TAPER,,,,,,,,,,,,,,,, MT 3
SPINDLE TRAVEL,,,,,,,,,,,,,,, 6"
NUMBER OF SPINDLE SPEEDS,,,,, VARIABLE
RANGE OF SPINDLE SPEEDS,,,,,, 65 - 2000 RPM
DIST SPINDLE TO BASE,,,,,,,,, 44-1/4"
DIST SPINDLE TO TABLE,,,,,,,, 32-3/8"
TABLE SIZE,,,,,,,,,,,,,,,,,,, 22 X 18-3/4"
TABLE WEIGHT MAX LBS,,,,,,,,, 230 LBS
T-SLOT,,,,,,,,,,,,,,,,,,,,,,, 2 @ 5/8"
T-SLOT CENTERS,,,,,,,,,,,,,,, 8-1/2"
MAIN MOTOR,,,,,,,,,,,,,,,,,,, 2 HP 230V 3 PH
STANDARD FEATURES:
RUNS QUIETER AND SMOOTHER THAN A CONVENTIONAL
VARIABLE SPEED HEAD
230 VOLT MOTOR CAN RUN ON SINGLE PHASE MOTOR
LOW MAINTENANCE HEAD HAS LESS MOVING PARTS
INCORPORATED A HIGH LOW GEAR BOX TO MAINTAIN
LOW SPEED TORQUE
CHROME MOLYBDENUM GEARS ARE HARDENDED, GROUND
AND SHAVED
QUIET RUNNING AND LONGER LIFE
SPEED CAN BE ADJUSTED IN EACH RANGE DURING
OPERATION
LED SPINDLE RPM READOUT IS CONVENIENTLY
MOUNTED
TAPPING MODE ALLOWS INSTANTANEOUS SPINDLE
REVERSAL
EASY TO READ INTERNAL DEPTH GAUGE
EXTRA LARGE EMERGENCY STOP BUTTON ADDS TO
SAFE OPERATION
TABLE CAN BE RAISED FROM THE FRONT OR SIDE
LARGE PORDUCTION TABLE AND T-SLOTTED DISH
IN BASE
INTREGRATED TAPPING AND REVERING CONTROLS
COMPLETE COOLANT SYSTEM
T-SLOTTED WORK TABLE
