Top Seller
SUMMIT DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$17,990 USD
Manufacturer:
SUMMIT
Model:
3'H RADIAL DRILL
Capacity:
1.25"

Specifications

Condition:
new
Stock number:
060523
Spindle feeds:
4
Spindle motor:
3 HP
Spindle taper:
MT 4
Range of feeds:
0.005-.021 IPR
Spindle speeds:
8
Spindle travel:
9.8"
Column diameter:
9.45"
Drilling capacity:
1.25"
Coolant pump motor:
0.1 HP
Optional equipment:
PRICE ON REQUEST
Arm elevating motor:
1 HP
Spindle speed range:
85-2160 RPM
Spindle axis to column:
7.9" - 39.4"
Subcategory:
Drills
Subcategory 2:
Radial arm

Description

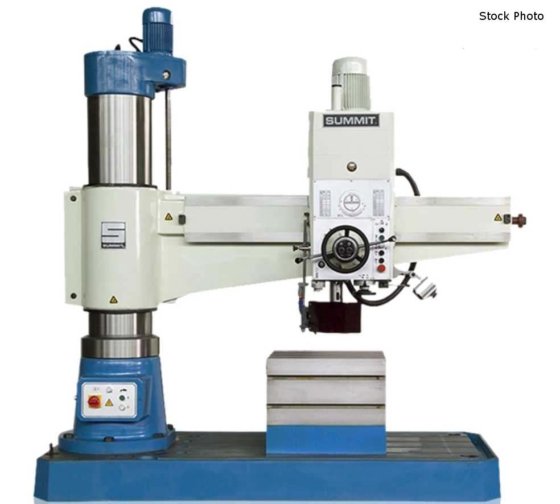

SUMMIT (NEW) MODEL 3'H RADIAL DRILL
DRILLING CAPACITY ............ 1.25"
SPINDLE MOTOR ................ 3 HP
SPINDLE AXIS TO COLUMN ....... 7.9" - 39.4"
COLUMN DIAMETER .............. 9.45"
SPINDLE TAPER ................ MT 4
SPINDLE TRAVEL ............... 9.8"
SPINDLE SPEEDS ............... 8
SPINDLE SPEED RANGE .......... 85-2160 RPM
SPINDLE FEEDS ................ 4
RANGE OF FEEDS ............... 0.005-.021 IPR
HORIZ TRAVERSE OF SPINDLE HEAD ON ARM 27.5"
ARM ELEVATING MOTOR .......... 1 HP
COOLANT PUMP MOTOR ........... 0.1 HP
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
PLAIN BOX TABLE ............ POR
TILTING BOX TABLE .......... POR
