Top Seller
SUMMIT DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$29,900 USD
Manufacturer:
Summit
Model:
5'H RADIAL DRILL
Capacity:
2"

Specifications

Condition:
new
Stock number:
060524
Spindle feeds:
16
Spindle motor:
5.5 HP
Spindle taper:
MT 5
Range of feeds:
0.0015-.125 IPR
Spindle speeds:
16
Spindle travel:
12.4"
Column diameter:
13.8"
Drilling capacity:
2"
Coolant pump motor:
0.12 HP
Optional equipment:
PRICE ON REQUEST
Arm elevating motor:
2 HP
Spindle speed range:
30-2400 RPM
Spindle axis to column:
13.8" - 63"
Subcategory:
Drills
Subcategory 2:
Radial arm

Description

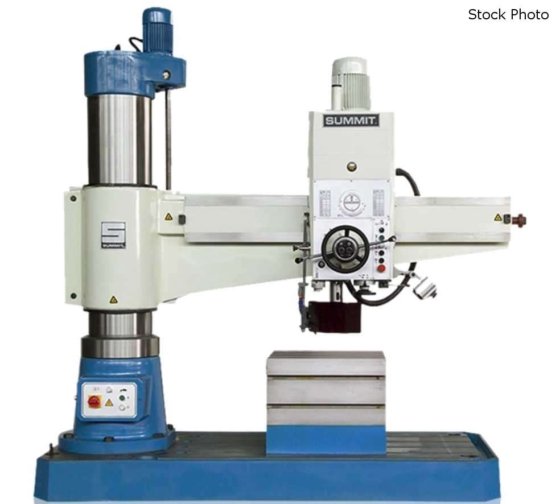

SUMMIT (NEW) MODEL 5'H RADIAL DRILL
DRILLING CAPACITY ........... 2"
SPINDLE MOTOR ............... 5.5 HP
SPINDLE AXIS TO COLUMN ...... 13.8" - 63"
COLUMN DIAMETER ............. 13.8"
SPINDLE TAPER ............... MT 5
SPINDLE TRAVEL .............. 12.4"
SPINDLE SPEEDS .............. 16
SPINDLE SPEED RANGE ......... 30-2400 RPM
SPINDLE FEEDS ............... 16
RANGE OF FEEDS .............. 0.0015-.125 IPR
HORIZ TRAVERSE OF SPINDLE HEAD ON ARM 50"
ARM ELEVATING MOTOR ......... 2 HP
HYD CLAMPING MOTOR-HEAD & ARM 1 HP
COOLANT PUMP MOTOR .......... 0.12 HP
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
PLAIN BOX TABLE ............ POR
TILTING BOX TABLE .......... POR
