Top Seller
SUMMIT DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$49,990 USD
Manufacturer:
SUMMIT
Model:
6'H RADIAL DRILL
Capacity:
2.5"

Specifications

Condition:
new
Stock number:
060525
Spindle feeds:
16
Spindle motor:
7.5 HP
Spindle taper:
MT 5
Range of feeds:
0.0015-.125 IPR
Spindle speeds:
16
Spindle travel:
15.75"
Column diameter:
17.7"
Drilling capacity:
2.5"
Coolant pump motor:
0.16 HP
Optional equipment:
PRICE ON REQUEST
Arm elevating motor:
3 HP
Spindle speed range:
24-1920 RPM
Spindle axis to column:
17.7" - 80.7"
Subcategory:
Drills
Subcategory 2:
Radial arm

Description

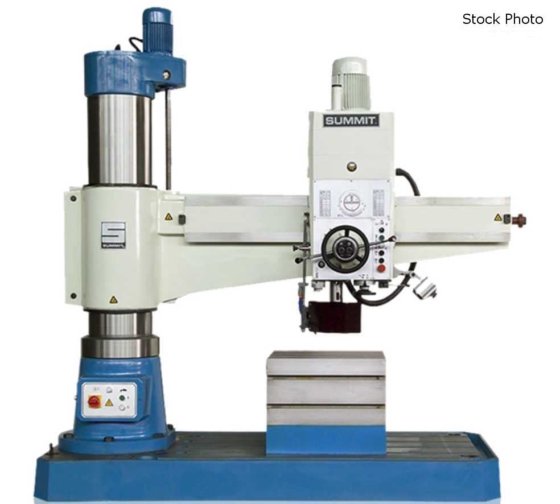

SUMMIT (NEW) MODEL 6'H RADIAL DRILL
DRILLING CAPACITY ........... 2.5"
SPINDLE MOTOR ............... 7.5 HP
SPINDLE AXIS TO COLUMN ...... 17.7" - 80.7"
COLUMN DIAMETER ............. 17.7"
SPINDLE TAPER ............... MT 5
SPINDLE TRAVEL .............. 15.75"
SPINDLE SPEEDS .............. 16
SPINDLE SPEED RANGE ......... 24-1920 RPM
SPINDLE FEEDS ............... 16
RANGE OF FEEDS .............. 0.0015-.125 IPR
HORIZ TRAVERSE OF SPINDLE HEAD ON ARM 63"
ARM ELEVATING MOTOR ......... 3 HP
HYD CLAMPING MOTOR-HEAD & ARM 1 HP
COOLANT PUMP MOTOR .......... 0.16 HP
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
PLAIN BOX TABLE ............ POR
TILTING BOX TABLE .......... POR
