WILLIS MACHINERY RD-1300H in Dodge
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
WILLIS MACHINERY
Model:
RD-1300H

Specifications

Condition:
new
Stock number:
061304
Category:
Machine Tools equipment in United States
Subcategory:
Drills
Subcategory 2:
Radial arm

Description

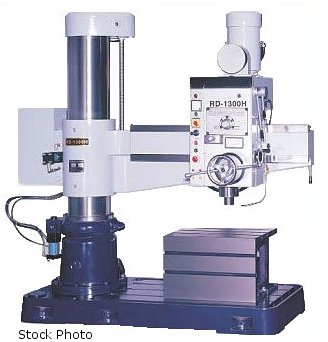

WILLIS MACHINERY (NEW) MODEL RD-1300H RADIAL
DRILL
CAPACITY
2" STEEL DRILLING
2 -3/8" CAST IRON DRILLING
1-1/4" STEEL TAPPING
1-1/2" CAST IRON TAPPING
3-1/2" STEEL BORING
5" CAST IRON BORING
9-7/8" SPINDLE STROKE
MT5 SPINDLE TAPER
44 - 1500 RPM SPINDLE SPEEDS - 12 SPEEDS
0.004"- 0.024" IPR SPINDLE FEEDS - 6 STEPS
11-7/8" COLUMN DIAMETER
50" SPINDLE CENTER TO COLUMN - MAXIMUM
13" SPINDLE CENTER TO COLUMN - MINIMUM
37" HORIZONTAL TRAVEL OF HEADSTOCK
48-1/2" BASE TO SPINDLE - MAXIMUM
21-1/4" BASE TO SPINDLE - MINIIMUM
51" ARM
27" VERTICAL ARM TRAVEL
36" HORIZONTAL DRILL HEAD TRAVEL
20" X 25" X 17" TABLE
7.5 HP MAIN MOTOR
2 HP ARM ELEVATION MOTOR
1/8 HP COOLANT PUMP
HARDENED & GROUND STEEL GEARS RUN IN AN OIL BATH
SPINDLE & QUILL MADE FROM HARDENED, GROUND ALLOY
SPINDLE RETURN TENSION ADJUSTABLE BY RETURN SPRING
DOUBLE WALL COLUMN FOR MAXIMUM RIGIDITY
POWER FEED RATES CAN BE CHANGED WHILE SPINDLE RUNS
LIMIT SWITCHES TO PREVENT OVER TRAVEL
SEPARATE MOTOR FOR RAISING ARM - SAFETY NUT
