1978 IKEDA DRILLS in Dodge
Location:
Dodge Center, MN
Price:
$6,950 USD
Manufacturer:
Ikeda
Model:
RM-1375
Capacity:
13" X 48"

Specifications

Condition:
used
Year:
1978
Serial number:
78151
Stock number:
016017
Volts:
230/460V
Arm length:
53-1/2"
Elevating arm:
1-1/3 HP
Spindle motor:
7-1/2 HP
Spindle taper:
#5 MORSE
Clamping motor:
1/6 HP
Rated capacity:
13" X 48"
Spindle stroke:
14-1/2"
Column diameter:
13-5/8"
Capacity in steel:
2-1/2"
Spindle rpm range:
30-1500
Capacity in cast iron:
2-3/4"
Boring capacity in steel:
4"
Column to spindle center:
9" - 54"
Max dist spindle to base:
55"
Tapping capacity in steel:
2"
Subcategory:
Drills
Subcategory 2:
Radial arm

Description

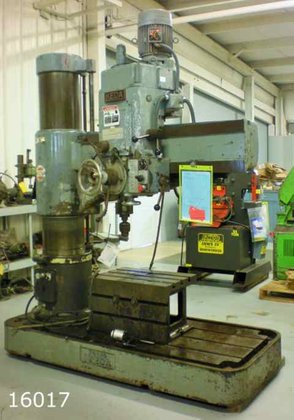

IKEDA (USED) MODEL RM-1375 RADIAL ARM DRILL
RATED CAPACITY .................... 13" X 48"
COLUMN DIAMETER ................... 13-5/8"
ARM LENGTH ........................ 53-1/2"
COLUMN TO SPINDLE CENTER .......... 9" - 54"
MAX DIST SPINDLE TO BASE .......... 55"
CAPACITY IN STEEL ................. 2-1/2"
TAPPING CAPACITY IN STEEL ......... 2"
BORING CAPACITY IN STEEL .......... 4"
CAPACITY IN CAST IRON ............. 2-3/4"
SPINDLE MOTOR ..................... 7-1/2 HP
VOLTS ............................. 230/460V
ELEVATING ARM ..................... 1-1/3 HP
CLAMPING MOTOR .................... 1/6 HP
SPINDLE RPM RANGE ................. 30-1500
SPINDLE STROKE .................... 14-1/2"
SPINDLE TAPER ..................... #5 MORSE
