JET DRILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$14,999 USD
Manufacturer:
JET
Model:
320033 J-720R

Specifications

Condition:
new
Stock number:
061879
Motor:
3 HP, 3 PHASE
Volts:
230/460 V
Feed rates:
002 .004 .006 IPR
Table size:
23-5/8" X 17-1/2" X 15"
Spindle speed:
88-1500 RPM
T-slots - size:
3/4"
Column diameter:
8-1/4"
Elevating motor:
1 HP
T-slots - number:
3
Volts - prewired:
230 V
Coolant pump motor:
1/8 HP
Number of spindle speeds:
6
Travel of arm - vertical:
23-13/16"
Subcategory:
Drills
Subcategory 2:
Radial arm

Description

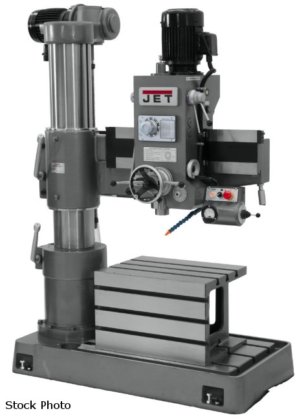

JET (NEW) MODEL 320033 J-720R RADIAL ARM
DRILL PRESS
COLUMN DIAMETER ............... 8-1/4"
MAXIMUM MINIMUM
COLUMN TO SPINDLE 29-1/2" 8-5/8"
BASE TO SPINDLE END 41-3/4" 9-5/8"
CAPACITY STEEL CAST IRON
DRILLING 1-1/2" 2"
TAPPING 3/4" 1"
BORING 2-3/4" 4"
TRAVEL OF HEAD - HORIZONTAL ... 20-7/8"
TRAVEL OF ARM - VERTICAL ...... 23-13/16"
TABLE SIZE .......... 23-5/8" X 17-1/2" X 15"
T-SLOTS - NUMBER .............. 3
T-SLOTS - SIZE ................ 3/4"
NUMBER OF SPINDLE SPEEDS ...... 6
SPINDLE SPEED ................. 88-1500 RPM
FEED RATES ............... .002 .004 .006 IPR
MOTOR ......................... 3 HP, 3 PHASE
ELEVATING MOTOR ............... 1 HP
COOLANT PUMP MOTOR ............ 1/8 HP
VOLTS ......................... 230/460 V
VOLTS - PREWIRED .............. 230 V
FEATURES:
POWER TRAIN GEARS & SPLINE SHAFT ARE MADE OF
THE FINEST QUALITY HEAT-TREATED & GROUND
NICKEL-CHROME STEEL, GIVING EXTRA STRENGTH &
SMOOTHNESS TO HIGH TORQUE LOADS
SPINDLE IS MADE OF THE FINEST CASE HARDENED
STEEL FOR EXTRA STRENGTH AND WEAR
SPINDLE IS SUPPORTED BY DOUBLE ROW TAPER
ROLLER AND THRUST BALL BEARINGS AT THE NOSE,
WITH THRUST AND RADIAL AXIS BEARINGS AT THE
TOP
