BIRMINGHAM GRINDERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$21,450 USD
Model:
WSG-1225 AHD GRINDER

Specifications

Condition:
new
Stock number:
061716
Auto feed:
004" - 0.3"
Table size:
12" X 25"
Auto feed 2:
0002" -.002"
Rapid speed:
39"
Rapid speed 2:
18" (AHR,AHD)
Speed (60 hz):
1750 RPM
Center to table:
23"
Motor of spindle:
10 HP
Od x w x id size:
13.8"X1.6"X5"
Feed of handwheel:
0.0008"
Height of machine:
74.4"
Feed of handwheel 2:
0002"
Floor space (l x w):
112" X 88"
Magnetic chuck size:
11.8" X 23.6"
Max. longitudinal travel:
30"
Subcategory:
Surface
Subcategory 2:
Grinders

Description

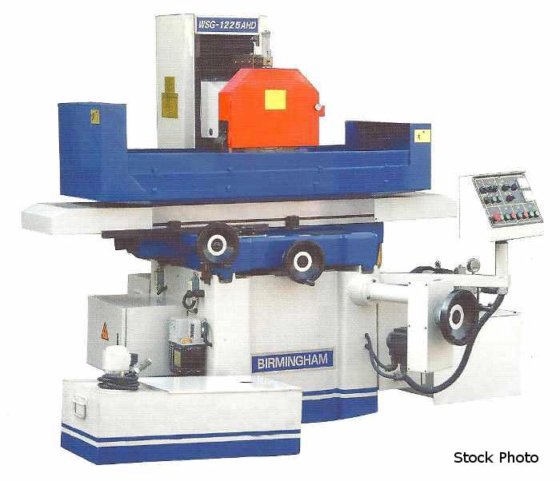

BIRMINGHAM (NEW)MDL WSG-1225 AHD PRECISION
3-AXIS AUTO SURFACE GRINDER
TABLE SIZE,,,,,,,,,,,,,,,,,,,,, 12" X 25"
MAX. LONGITUDINAL TRAVEL,,,,,,, 30"
MAX. DISTANCE FROM SPINDLE
CENTER TO TABLE,,,,,,,,,,,,,,, 23"
MAGNETIC CHUCK SIZE,,,,,,,,,,,, 11.8" X 23.6"
SPEED OF TABLE LONGITUDINAL MOVEMENT
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, 280" - 1000"
TABLE TRANSVERSE MOVEMENT
AUTO FEED,,,,,,,,,,,,,,,,,,,,, .004" - 0.3"
RAPID SPEED,,,,,,,,,,,,,,,,,,, 39"
FEED OF HANDWHEEL,,,,,,,,,,,,, 0.0008"
WHEELHEAD VERTICAL MOVEMENT
AUTO FEED,,,,,,,,,,,,,,,,,,,,, .0002" -.002"
RAPID SPEED,,,,,,,,,,,,,,,,,,, 18" (AHR,AHD)
FEED OF HANDWHEEL,,,,,,,,,,,,, .0002"
GRINDING WHEEL
SPEED (60 HZ),,,,,,,,,,,,,,,,, 1750 RPM
OD X W X ID SIZE,,,,,,,,,,,,,, 13.8"X1.6"X5"
MOTOR OF SPINDLE,,,,,,,,,,,,,,, 10 HP
MAX. LOADING CAPACITY OF TABLE, 600 LBS
(INCLUDE MAGNETIC CHUCK)
HEIGHT OF MACHINE,,,,,,,,,,,,,, 74.4"
FLOOR SPACE (L X W),,,,,,,,,,,, 112" X 88"
STANDARD EQUIPMENT:
GRINDING WHEEL
GRINDING WHEEL FLANGE
WHEEL BALANCE ARBOR
DIAMOND WHEEL DRESSER
WORKING LIGHT SYSTEM
TOOL BOX
HOISTING SET
LEVELING PADS
COOLANT/DUST COLLECT SYSTEM
ELECTRICAL MAGNET CHUCK WITH DEMAGNET SYSTEM
AHD: X, Y, AXIS HDY: AUTO FEED
UP/DOWN SERVO AUTO FEED
