Top Seller
BIRMINGHAM GRINDERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$27,950 USD
Model:
WSG-1640AHD GRINDER

Specifications

Condition:
new
Stock number:
061695
Auto feed:
0.004" - 0.3"
Table size:
16" X 40"
Auto feed 2:
0.0002" - 0.002"
Rapid speed:
39"
Rapid speed 2:
18"
Speed (60 hz):
1750 RPM
Motor of spindle:
10 HP
Od x w x id size:
13.8" X 1.6" X 5"
Feed of handwheel:
0.0008"
Height of machine:
74.4"
Feed of handwheel 2:
0.0002"
Floor space (l x w):
176" X 96"
Magnetic chuck size:
15.7" X 39.4"
Max. longitudinal travel:
44"
Subcategory:
Surface
Subcategory 2:
Grinders

Description

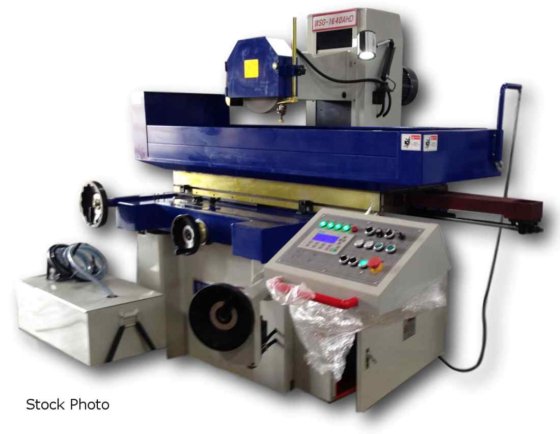

BIRMINGHAM (NEW)MDL WSG-1640AHD PRECISION
3-AXIS AUTO SURFACE GRINDER
TABLE SIZE,,,,,,,,,,,,,,,,,,,,,, 16" X 40"
MAX. LONGITUDINAL TRAVEL,,,,,,,, 44"
MAGNETIC CHUCK SIZE,,,,,,,,,,,, 15.7" X 39.4"
SPEED OF TABLE LONGITUDINAL MOVEMENT
,,,,,,,,,,,,,,,,,,,,,, 280" - 1000"
TABLE TRANSVERSE MOVEMENT
AUTO FEED,,,,,,,,,,,,,,,,,,,, 0.004" - 0.3"
RAPID SPEED,,,,,,,,,,,,,,,,,, 39"
FEED OF HANDWHEEL,,,,,,,,,,,, 0.0008"
WHEELHEAD VERTICAL MOVEMENT
AUTO FEED,,,,,,,,,,,,,,,, 0.0002" - 0.002"
RAPID SPEED,,,,,,,,,,,,,,,,,, 18"
FEED OF HANDWHEEL,,,,,,,,,,,, 0.0002"
GRINDING WHEEL
SPEED (60 HZ),,,,,,,,,,,,,,,, 1750 RPM
OD X W X ID SIZE,,,,,,,,, 13.8" X 1.6" X 5"
MOTOR OF SPINDLE,,,,,,,,,,,,,,, 10 HP
MAX. LOADING CAPACITY OF TABLE, 1300 LBS
HEIGHT OF MACHINE,,,,,,,,,,,,,, 74.4"
FLOOR SPACE (L X W),,,,,,,,,,,, 176" X 96"
STANDARD EQUIPMENT
GRINDING WHEEL
GRINDING WHEEL FLANGE
WHEEL BALANCE ARBOR
DIAMOND WHEEL DRESSER
WORKING LIGHT SYSTEM
TOOL BOX
HOISTING SET
LEVELING PADS
COOLANT/DUST COLLECT SYSTEM
ELECTRICL MAGNET CHUCK WITH DEMAGNET SYSTEM
F.O.B. CALIFORNIA
