Top Seller
BIRMINGHAM GRINDERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$6,500 USD
Model:
WSG-618
Grinding Length:
18-1/2"

Specifications

Condition:
new
Stock number:
061386
Table size:
6" X 18"
Coolant pump:
0.05 HP
Spindle motor:
2 HP
Spindle speed:
3,600 RPM
Center to table:
15-3/4"
Lubricating pump:
0.02 HP
Grinding wheel size:
8" X 12" X
Dust collector motor:
1/2 HP
Maximum cross travel:
7"
Maximum grinding width:
6-1/2"
Maximum grinding length:
18-1/2"
Peripheral speed of wheel:
110 FT/S
Subcategory:
Surface
Subcategory 2:
Grinders

Description

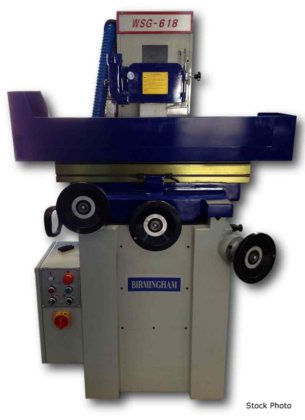

BIRMINGHAM (NEW) MDL WSG-618 PRECISION MANUAL
SURFACE GRINDER
TABLE SIZE,,,,,,,,,,,,,,,,,,,,, 6" X 18"
MAXIMUM GRINDING LENGTH,,,,,,,, 18-1/2"
MAXIMUM GRINDING WIDTH,,,,,,,,, 6-1/2"
MAXIMUM DIST FROM SPINDLE
CENTER TO TABLE,,,,,,,,,,,,,, 15-3/4"
MAXIMUM LONGITUDINAL TRAVEL,,,, 19"
MAXIMUM CROSS TRAVEL,,,,,,,,,,, 7"
LONGITUDINAL TRAVEL PER REV,,,, 4-1/8"
CROSS TRAVEL PER REVOLUTION,,,, 0.2"
CROSS TRAVEL PER GRADUATION,,,, 0.0008"
VERTICAL TRAVEL PER REVOLUTION, 0.05"
VERTICAL TRAVEL PER GRADUATION, 0.00025"
PERIPHERAL SPEED OF WHEEL,,,,,, 110 FT/S
SPINDLE SPEED,,,,,,,,,,,,,,,,,, 3,600 RPM
GRINDING WHEEL SIZE,,,,,,,,,,,, 8" X 12" X
1-1/4"
SPINDLE MOTOR,,,,,,,,,,,,,,,,,, 2 HP
DUST COLLECTOR MOTOR,,,,,,,,,,, 1/2 HP
COOLANT PUMP,,,,,,,,,,,,,,,,,,, 0.05 HP
LUBRICATING PUMP,,,,,,,,,,,,,,, 0.02 HP
STANDARD EQUIPMENT
*GRINDING WHEEL
*GRINDING WHEEL FLANGE
*WHEEL BALANCE ARBOR
*DIAMOND WHEEL DRESSER
*WORKING LIGHT SYSTEM
*TOOL BOX
*HOISTING SET
*LEVELING PADS
*COOLANT/DUST SYSTEM
*STANDARD PERM MAGNET CHUCK
FEATURES:
2 HP WHEEL SPINDLE MOTOR
FINE GRADUATION ON TRAVELS
HIGH PRECISION CARTRIDGE WHEEL SPINDLE
HIGH PRECISION AND SMOOTH ROLLER WAY TABLE
AUTO LUBRICATION ON LEADSCREWS AND WAYS
FINE GRAIN HIGH TENSILE CASTING CONSTRUCTION
