KENT GRINDERS in Dodge Center,
Location:
Dodge Center, MN
Model:
SGS-1020AH

Specifications

Condition:
new
Stock number:
060012
T-slot:
1 X 9/16"
Table size:
10" X 20"
Wheel speed:
3580 RPM
0.0001" res):
$ 2,180.00
Coolant unit:
$ 2.220.00
Spindle motor:
2 HP
Grinding wheel:
8" X 1/2"x 1-1/4
1 gallon mixes 1:
30,,,,,,,,,,,,, $ 150.00
Working capacity:
10" X 20"
Cross feed travel:
10.5"
Extra wheel flange:
$ 75.00
Msb-1 control unit:
$ 2,815.00
Longitudinal travel:
20.5"
Vertical graduation:
0.0005"
Vertical revolution:
0.1000"
Pole permanent chuck:
$ 2,480.00
Elect. chuck & control:
$ 2,150.00
Dro installation charge:
$ 350.00
Subcategory:
Surface
Subcategory 2:
Grinders

Description

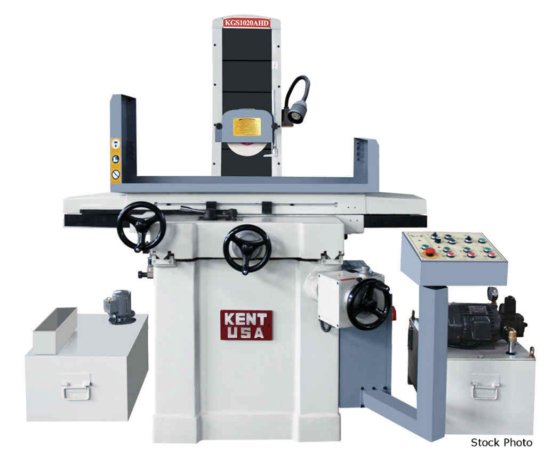

(NEW) KENT MODEL SGS-1020AH SURFACE GRINDER
WORKING CAPACITY,,,,,,,,,,,, 10" X 20"
LONGITUDINAL TRAVEL,,,,,,,,, 20.5"
CROSS FEED TRAVEL,,,,,,,,,,, 10.5"
TABLE SIZE,,,,,,,,,,,,,,,,,, 10" X 20"
T-SLOT,,,,,,,,,,,,,,,,,,,,,, 1 X 9/16"
WHEEL SPEED,,,,,,,,,,,,,,,,, 3580 RPM
SPINDLE MOTOR,,,,,,,,,,,,,,, 2 HP
GRINDING WHEEL,,,,,,,,,,,,,, 8" X 1/2"x 1-1/4
VERTICAL GRADUATION,,,,,,,,, 0.0005"
VERTICAL REVOLUTION,,,,,,,,, 0.1000"
SPINDLE CENTER TO TABLE,,,,, 19"
2-AXIS AUTOMATIC MOVEMENT
AND ELECTRONIC AUTO CROSSFEED
PRECISION HAND SCRAPPED TURCITE TABLE AND
SADDLE WAYS FOR LONG LASTING PRECISION
HYDRAULIC POWERED TABLE MOVEMENT FOR MORE
PRODUCTIVE GRINDING SETUP AND WORK
HIGH COLUMN, 19" SPINDLE CENTER TO WORK FOR
EXTRA CLEARANCE UNDER THE WHEEL
CENTRALIZED AUTO LUBRICATION SYSTEM PROVIDES
LUBRICATION TO ALL NECESSARY POINTS
SAFETY 24V CONTROL CIRCUITS POWER
PRICE ALSO INCLUDES:
GRINDING WHEEL, WHEEL FLANGE, WHEEL BALANCE
BASE, WHEEL BALANCING ARBOT, DIAMOND TABLE
DRESSER, WORK LIGHT, LEVELING PADS, TOOLBOX
WITH TOOLS
OPTIONAL ACCESSORIES:
ACU-RITE 200S DRO (2 AXIS, 10X18",
0.0001" RES),,,,,,,,,,,,,,,,,,,, $ 2,180.00
DRO INSTALLATION CHARGE,,,,,,,,,,, $ 350.00
WALKER 8" X 18" LBP FINE DIV LONG
BAR POLE ELECT CHUCK WITH
MSB-1 CONTROL UNIT ............... $ 2,815.00
WALKER 8" X 18" CERAMAX FINE
POLE PERMANENT CHUCK ............. $ 2,480.00
KANETSU 8" X 18" FINE POLE
ELECT. CHUCK & CONTROL ........... $ 2,150.00
PAPER FILTER & MAG SEPARATOR
COOLANT UNIT,,,,,,,,,,,,,,,,,,,,,,,$ 2.220.00
EXTRA WHEEL FLANGE,,,,,,,,,,,,,,,, $ 75.00
PROLONG ULTRA CUT ONE COOLANT
1 GALLON MIXES 1:30,,,,,,,,,,,,, $ 150.00
