Top Seller
KENT GRINDERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$25,900 USD
Model:
SGS-1230AHD

Specifications

Condition:
new
Stock number:
061057
T-slot:
1 X 9/16"
0.0001" res:
$ POR
Coolant unit:
$ POR
Table travel:
31.75"
Saddle travel:
13.5"
Spindle motor:
5 HP
Spindle speed:
1750 RPM
Grinding wheel:
12" X 1-1/4" X 5"
Working capacity:
12" X 30"
(1 gallon, mixes 1:
30).......... $ POR
Extra wheel flange:
$ POR
Vertical graduation:
0.0005"
Vertical revolution:
0.100"
Dro installation charge:
$ POR
Static wheel balancing base:
$ POR
Subcategory:
Surface
Subcategory 2:
Grinders

Description

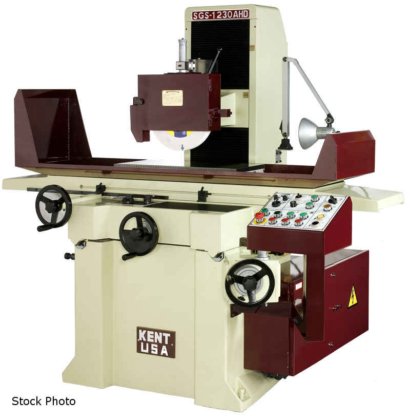

(NEW) KENT MODEL SGS-1230AHD
WORKING CAPACITY........... 12" X 30"
TABLE TRAVEL............... 31.75"
SADDLE TRAVEL.............. 13.5"
T-SLOT..................... 1 X 9/16"
SPINDLE MOTOR.............. 5 HP
SPINDLE SPEED.............. 1750 RPM
GRINDING WHEEL............. 12" X 1-1/4" X 5"
VERTICAL GRADUATION........ 0.0005"
VERTICAL REVOLUTION........ 0.100"
AUTO DOWNFEED INCREMENT.... 0.0001" 10 STEPS
SPINDLE CENTER TO TABLE.... 23"
STANDARD EQUIPMENT:
3 AXIS AUTOMATIC MOVEMENT WITH INCREMENTAL
DOWNFEED, ELECTRONIC AUTO-CROSSFEED, AND
HYDRAULIC POWERED TABLE MOVEMENT
PRECISION HAND SCRAPPED TURCITE TABLE AND
SADDLE WAYS FOR SMOOTH AND LONG LASTING
PROTECTION
HIGH COLUMN DESIGN WITH 23" SPINDLE CENTER TO
TABLE FOR EXTRA CLEARANCE UNDER THE WHEEL AND
RAPID ELEVATION MOTOR FOR QUICK/EASY
POSITIONING
CENTRALIZED AUTOMATIC ONE-SHOT LUBE SYSTEM
SAFETY 24 V CONTROL CIRCUIT POWER
STANDARD ACCESSORIES:
GRINDING WHEEL, WHEEL FLANGE, WHEEL BALANCING
BASE, WHEEL BALANCING ARBOR, DIAMOND TABLE
DRESSER, WORK LIGHT, LEVELING PADS, AND
TOOL BOX WITH TOOLS
OPTIONS AND ACCESSORIES
ACU-RITE 200G DRO (2 AXIS, 14 X 20)
0.0001" RES.................... $ POR
KANETSU 12 X 28 FINE POLE CHUCK $ POR
PAPER FILTER & MAGNETIC SEPARATOR
COOLANT UNIT .................... $ POR
STATIC WHEEL BALANCING BASE...... $ POR
EXTRA WHEEL FLANGE .............. $ POR
DRO INSTALLATION CHARGE ......... $ POR
PROLONG ULTRA CUT ONE COOLANT
(1 GALLON, MIXES 1:30).......... $ POR
PRICES FOB FACTORY
