Top Seller
KENT GRINDERS in Dodge Center,
Location:
Dodge Center, MN
Model:
SGS-1640AHD

Specifications

Condition:
new
Stock number:
060662
T slot:
1 X 9/16"
Control:
$ POR
0.0001" res:
$ POR
Table travel:
43"
Saddle travel:
17 3/4"
Spindle motor:
7.5 HP
Spindle speed:
1750 RPM
Grinding wheel:
14" X 2" X 5"
2.5 gal, mixes 1:
30,,,,,,,,,,,, $ POR
Working capacity:
16" X 40"
Chuck and control:
$ POR
Extra wheel flange:
$ POR
Vertical graduation:
0.0005"
Vertical revolution:
0.100"
Static wheel balancer:
$ POR
Subcategory:
Surface
Subcategory 2:
Grinders

Description

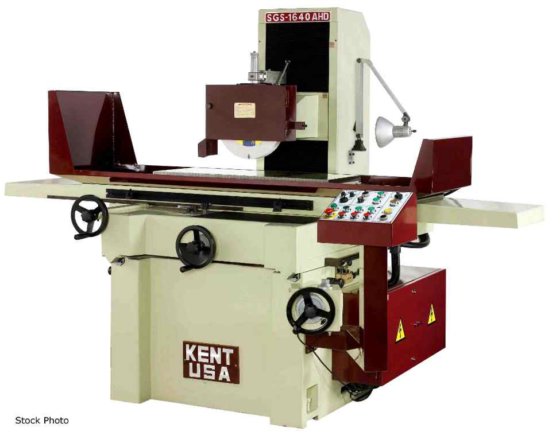

(NEW) KENT MODEL SGS-1640AHD SURFACE GRINDER
TABLE TRAVEL,,,,,,,,,,,,,,, 43"
SADDLE TRAVEL,,,,,,,,,,,,,, 17 3/4"
WORKING CAPACITY,,,,,,,,,,, 16" X 40"
T SLOT ,,,,,,,,,,,,,,,,,,,, 1 X 9/16"
SPINDLE MOTOR,,,,,,,,,,,,,, 7.5 HP
SPINDLE SPEED,,,,,,,,,,,,,, 1750 RPM
GRINDING WHEEL ............ 14" X 2" X 5"
VERTICAL GRADUATION ....... 0.0005"
VERTICAL REVOLUTION ....... 0.100"
AUTO INCREMENTAL DOWNFEED,, 0.0001" 10 STEPS
SPINDLE CENTER TO TABLE,,,, 23"
3 AXIS AUTOMATIC MOVEMENT WITH INCREMENTAL
DOWFNEED, ELECTRONIC AUTO-CROSSFEED, AND
HYDRAULIC POWERED TABLE MOVEMENT
PRECISION HAND SCRAPPED TURCITE TABLE AND
SADDLE WAYS FOR SMOOTH AND LONG LASTING
PRECISION
HIGH COLUMN DESIGN WITH 23" SPINDLE CENTER
TO TABLE FOR EXTRA CLEARANCE UNDER THE
WHEEL AND RAPID ELEVATION MOTOR FOR QUICK
EASY POSITIONING
CENTRALIZED AUTOMATIC ONE SHOP LUBE SYSTEM
PROVIDES LUBRICATION TO ALL POINTS
SAFETY 24 V CONTROL CIRCUIT POWER
PRICE INCLUDES:
16" X 40" ELECTRIC MAG CHUCK AND CONTROL WITH
AUTOMATIC DEMAGNETIZER, PAPER FILTER AND
MAGNETIC SEPARATOR COOLANT SYSTEM, AND
OVERHEAD PARALLEL DRESSER
OPTIONAL ACCESSORIES
ACU-RITE 200G DRO (2 AXIS, 20" X 20"
0.0001" RES,,,,,,,,,,,,,,,,,,,, $ POR
WALKER 16" X 40" INTERLOC WITH SMART 5B
CONTROL,,,,,,,,,,,,,,,,,,,,,,,,,, $ POR
KANETSU 16 X 40 FINE POLE ELECTRIC
CHUCK AND CONTROL,,,,,,,,,,,,,, $ POR
STATIC WHEEL BALANCER ,,,,,,,,,,, $ POR
EXTRA WHEEL FLANGE .............. $ POR
PROLONG ULTRA CUT 1 COOLANT
2.5 GAL, MIXES 1:30,,,,,,,,,,,, $ POR
