KENT GRINDERS in Dodge Center,
Location:
Dodge Center, MN
Model:
SGS-1640SD

Specifications

Condition:
new
Stock number:
061187
T slot:
1 X 9/16"
Compensation:
$ POR
Table travel:
43"
Saddle travel:
17 3/4"
Spindle motor:
7.5 HP
Spindle speed:
1750 RPM
1 gal, mixes 1:
30,,,,,,,,,,,,, $ POR
Grinding wheel:
14" X 2" X 5"
Working capacity:
16" X 40"
Chuck and control:
$ POR
Extra wheel flange:
$ POR
W/smart 5b control:
$ POR
Vertical graduation:
0.0005"
Vertical revolution:
0.100"
Static wheel balancer:
$ POR
Subcategory:
Surface
Subcategory 2:
Grinders

Description

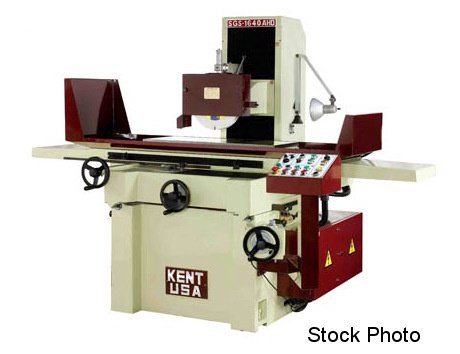

(NEW) KENT MODEL SGS-1640SD SURFACE GRINDER
TABLE TRAVEL,,,,,,,,,,,,,,, 43"
SADDLE TRAVEL,,,,,,,,,,,,,, 17 3/4"
WORKING CAPACITY,,,,,,,,,,, 16" X 40"
T SLOT ,,,,,,,,,,,,,,,,,,,, 1 X 9/16"
SPINDLE MOTOR,,,,,,,,,,,,,, 7.5 HP
SPINDLE SPEED,,,,,,,,,,,,,, 1750 RPM
GRINDING WHEEL ............ 14" X 2" X 5"
VERTICAL GRADUATION ....... 0.0005"
VERTICAL REVOLUTION ....... 0.100"
AUTO INCREMENTAL DOWNFEED,, 0.0001"
SPINDLE CENTER TO TABLE,,,, 23"
3 AXIS AUTOMATIC MOVEMENT WITH INCREMENTAL
DOWFNEED, ELECTRONIC AUTO-CROSSFEED, AND
HYDRAULIC POWERED TABLE MOVEMENT
PRECISION HAND SCRAPPED TURCITE TABLE AND
SADDLE WAYS FOR SMOOTH AND LONG LASTING
PRECISION
HIGH COLUMN DESIGN WITH 23" SPINDLE CENTER
TO TABLE FOR EXTRA CLEARANCE UNDER THE
WHEEL AND RAPID ELEVATION MOTOR FOR QUICK
EASY POSITIONING
CENTRALIZED AUTOMATIC ONE SHOP LUBE SYSTEM
PROVIDES LUBRICATION TO ALL POINTS
SAFETY 24 V CONTROL CIRCUIT POWER
PRICE INCLUDES:
16" X 40" ELECTRIC MAG CHUCK AND CONTROL WITH
AUTOMATIC DEMAGNETIZER, PAPER FILTER AND
MAGNETIC SEPARATOR COOLANT SYSTEM, AND
OVERHEAD PARALLEL DRESSER
STANDARD ACCESSORIES:
GRINDING WHEEL
WHEEL FLANGE
WHEEL BALANCING BASE
WHEEL BALANCING ARBOR
DIAMOND TABLE DRESSER BASE AND TIP
LEVELING BOLTS AND PADS
WORK LIGHT
TOOLBOX WITH TOOLS
SD CONTROL FEATURES:
*STRINGENT EUROPEAN CE CERTIFIED ELECTRICS
*PROPORTIONAL VALVE HYDRAULIC SYSTEM WITH
PROXIMITY SENSORS FOR SAFE, RESPONSIVE,
AND QUIET OPERATION
*PLC CONTROL FOR EASY SETTING OF REVERSAL
LIMITS ON CONTROL PANEL
*Z-AXIS DRIVEN BY MICROPROCESSOR CONTRLLED
NC SYSTEM SERVO MOTORS WITH PRECISION
GLASS SCALE CLOSE LOOP FEEDBACK
*THREE MAIN MODE OD Z AXIS CONTROL:
1. AUTOMATIC MODE
AUTOMATIC MODE CAN BE BROKEN DOWN INTO
SURFACE GRINDING AND PLUNGE GRINDING
MODES. JUST ENTER TOTAL STOCK REMOVAL
AMOUNT, ROUGH GRINDING STEP AND AMOUNT,
FINISH GRINDING STEP AND AMOUNT, NUMBER
OF SPARK OUT CYCLE AND THE MACHINE WILL
CYCLE THROUGH. AFTER AUTOMATIC CYCLE,
THE TABLE WILL PARK ON LEFT SIDE AND
GRINDING WHEEL COMES TO REST AT ONE OF
THREE SELECTED POSITIONS. (FINISH
POSITION, REFERENCE Z ZERO POSITION,
OR PREDETERMINED AMOUNT ABOVE REFERENCE
Z ZERO
2. MANUAL MODE
RAPID AND QUARTER SPEED RAPID UP AND
DOWN PUSHBUTTONS. PULSE MODE ALLOWS
FOR SINGLE STEP OR JOG STEPPING OF
SET DOWNFEED AMOUNT
3. MANUAL PULSE GENERATOR (ELECTRONIC
HANDWHEEL) MODE. CAN SELECT *1, *10
OR *20 STEPS
OPTIONAL ACCESSORIES
AUTOMATIC DRESSER W/DEPTH
COMPENSATION,,,,,,,,,,,,,,,,,,, $ POR
WALKER 16" X 32" INTERLOC
W/SMART 5B CONTROL,,,,,,,,,,,,, $ POR
KANETSU 16 X 40 FINE POLE ELECTRIC
CHUCK AND CONTROL,,,,,,,,,,,,, $ POR
STATIC WHEEL BALANCER ,,,,,,,,,, $ POR
EXTRA WHEEL FLANGE,,,,,,,,,,,,,, $ POR
PROLONG ULTRA CUT 1 COOLANT
1 GAL, MIXES 1:30,,,,,,,,,,,,, $ POR
