KENT GRINDERS in Dodge Center,
Location:
Dodge Center, MN
Model:
SGS-816MR

Specifications

Condition:
new
Stock number:
061008
T slot:
9/16"
Table size:
6 1/14" X 16"
Wheel speed:
3480 RPM
Spindle motor:
2 HP
Grinding wheel:
8" X 1/2" X 1 1/4
Fagor & others):
$ POR
Cross feed travel:
8"
Extra wheel flange:
$ POR
Msb-1 control unit:
$ POR
Micro downfeed dial:
0.0001
Perm magnetic chuck:
$ POR
Vertical graduation:
0.0010"
Vertical revolution:
0.0100"
Fine pole perm chuck:
$ POR
Flood coolant system:
$ POR
Longiitudinal travel:
17"
Dro installation charge:
$ POR
Electric chuck & control:
$ POR
Overhead parallel dresser:
$ POR
Dust suction coolant system:
$ POR
Subcategory:
Surface
Subcategory 2:
Grinders

Description

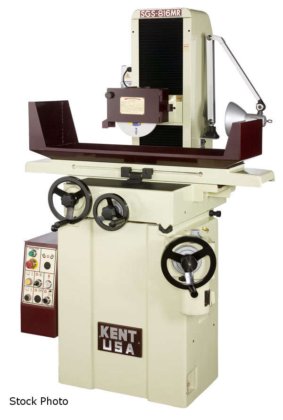

(NEW) KENT MODEL SGS-816MR SURFACE GRINDER
LONGIITUDINAL TRAVEL ...... 17"
CROSS FEED TRAVEL ......... 8"
TABLE SIZE ................ 6 1/14" X 16"
T SLOT .................... 9/16"
WHEEL SPEED ............... 3480 RPM
SPINDLE MOTOR ............. 2 HP
GRINDING WHEEL ............ 8" X 1/2" X 1 1/4
VERTICAL GRADUATION ....... 0.0010"
MICRO DOWNFEED DIAL ....... 0.0001
VERTICAL REVOLUTION ....... 0.0100"
SPINDLE CENTER TO TABLE ... 18"
SPINDLE MOTOR ............. 2 HP
8" X 16" WORKING SURFACE
BALL ROLLING TABLE,CABLE DRIVE,
DOUBLE VEE TEFLON SADDLE CROSS TRAVERSE,
ONE SHOT LUBRICATOR,CAST IRON BASE,
HIGH COLUMN & POWER RAPID ELEVATION,
MICRO-DOWNFEED DIAL
STANDARD ACCESSORIES
1 PC. WHEEL BALANCING BASE, 1 PC. GRINDING
WHEEL, 1 PC. DIAMOND TABLE DRESSER, 1 PC.
WORK LIGHT, 1 PC. WHEEL BALANCING ARBOR,
1 PC. WHEEL FLANGE, 1 SET TOOL BOX WITH TOOLS
OPTIONAL ACCESSORIES
WALKER 8" X 15" LBP FINE DIV LONG BAR POLE
ELECT CHUCK WITH
MSB-1 CONTROL UNIT .............. $ POR
WALKER 8" X 15" CERAMAX
FINE POLE PERM CHUCK ............ $ POR
KANETSU 8" X 16"
PERM MAGNETIC CHUCK ............. $ POR
KANETSU 8" X 16" FINE POLE
ELECTRIC CHUCK & CONTROL ........ $ POR
FLOOD COOLANT SYSTEM ............ $ POR
DUST SUCTION COOLANT SYSTEM ..... $ POR
OVERHEAD PARALLEL DRESSER ....... $ POR
EXTRA WHEEL FLANGE .............. $ POR
DRO SYSTEMS (MITUTOYO,SONY,
FAGOR & OTHERS).................. $ POR
DRO INSTALLATION CHARGE ......... $ POR
EVERYTHING F.O.B. CALIFORNIA
