Top Seller
KENT GRINDERS in Dodge Center,
Location:
Dodge Center, MN
Model:
SGS-618M

Specifications

Condition:
new
Stock number:
060212
T slot:
9/16"
Table size:
6" X 18"
Wheel speed:
3480 RPM
Spindle motor:
1.5 HP
Coolant system:
$ POR
Grinding wheel:
8" X 1/2" X 1 1/4
Fagor & others):
$ POR
Cross feed travel:
6 3/4"
Extra wheel flange:
$ POR
Msb-1 control unit:
$ POR
Perm magnetic chuck:
$ POR
Vertical graduation:
0.0010"
Vertical revolution:
0.0100"
Fine pole perm chuck:
$ POR
Longiitudinal travel:
19 3/4"
Dro installation charge:
$ POR
Electric chuck & control:
$ POR
Overhead parallel dresser:
$ POR
Dust suction coolant system:
$ POR
Subcategory:
Surface
Subcategory 2:
Grinders

Description

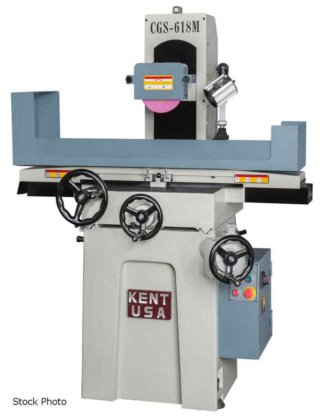

(NEW) KENT MODEL SGS-618M
LONGIITUDINAL TRAVEL ...... 19 3/4"
CROSS FEED TRAVEL ......... 6 3/4"
TABLE SIZE ................ 6" X 18"
T SLOT .................... 9/16"
WHEEL SPEED ............... 3480 RPM
SPINDLE MOTOR ............. 1.5 HP
GRINDING WHEEL ............ 8" X 1/2" X 1 1/4
VERTICAL GRADUATION ....... 0.0010"
VERTICAL REVOLUTION ....... 0.0100"
SPINDLE CENTER TO TABLE ... 18"
6" X 18" WORKING SURFACE
BALL ROLLING TABLE,CABLE DRIVE,
DOUBLE VEE TEFLON SADDLE CROSS TRAVERSE,
ONE SHOT LUBRICATOR,CAST IRON BASE,
HIGH COLUMN & HEAVIER DUTY ENLARGED
SPINDLE,
STANDARD ACCESSORIES
1 PC. WHEEL BALANCING BASE, 1 PC. GRINDING
WHEEL, 1 PC. DIAMOND TABLE DRESSER, 1 PC.
WORK LIGHT, 1 PC. WHEEL BALANCING ARBOR,
1 PC. WHEEL FLANGE, 1 SET TOOL BOX WITH TOOLS
OPTIONAL ACCESSORIES
WALKER 6" X 18" LBP FINE DIV LONG BAR POLE
ELECT CHUCK WITH
MSB-1 CONTROL UNIT .............. $ POR
WALKER 6" X 18" CERAMAX
FINE POLE PERM CHUCK ............ $ POR
KANETSU 6" X 18"
PERM MAGNETIC CHUCK ............. $ POR
KANETSU 8" X 16" FINE POLE
ELECTRIC CHUCK & CONTROL ........ $ POR
MAGNETIC SEPARATOR
COOLANT SYSTEM .................. $ POR
DUST SUCTION COOLANT SYSTEM ..... $ POR
COOLANT SYSTEM .................. $ POR
OVERHEAD PARALLEL DRESSER ....... $ POR
EXTRA WHEEL FLANGE .............. $ POR
DRO SYSTEMS (MITUTOYO,SONY,
FAGOR & OTHERS).................. $ POR
DRO INSTALLATION CHARGE ......... $ POR
EVERYTHING F.O.B. CALIFORNIA
