Top Seller
KO LEE GRINDERS in Dodge
Location:
Dodge Center, MN
Price:
$3,650 USD
Manufacturer:
KO LEE
Model:
BA960 GRINDER

Specifications

Condition:
used
Stock number:
015729
Sub table:
8-1/2" X 38"
Tailstocks:
22"
Slow feed (5:
1 RATIO) .... 9/16"
Table traverse:
14"
Maximum distance:
10-3/4"
Minimum distance:
3-3/4"
Swing over table:
8-1/4"
Collet and tailstock:
17"
Table working surface:
5-1/4" X 27-1/4"
Subcategory:
Grinders
Subcategory 2:
Tool & cutter

Description

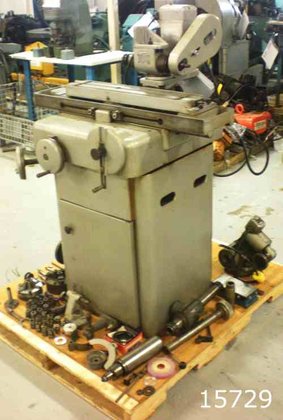

KO LEE (USED) MODEL BA960 TOOL & CUTTER
GRINDER
DISTANCE BETWEEN:
- TAILSTOCKS ............... 22"
- CENTERS AND TAILSTOCK .... 16"
- COLLET AND TAILSTOCK ..... 17"
- CHUCK FACE AND TAILSTOCK . 15-1/2"
TABLE WORKING SURFACE ...... 5-1/4" X 27-1/4"
SUB TABLE .................. 8-1/2" X 38"
CROSS FEED AND FEED EACH
REVOLUTION OF HANDWHEEL .. 7-1/4" - .100"
TABLE TRAVERSE ............. 14"
- FAST FEED (DIRECT DRIVE) . 2-13/16"
- SLOW FEED (5:1 RATIO) .... 9/16"
SWING OVER TABLE ........... 8-1/4"
CENTERLINE OF WHEEL SHAFT TO TOP OF TABLE:
- MINIMUM DISTANCE ......... 3-3/4"
- MAXIMUM DISTANCE ......... 10-3/4"
MULTIPLE ACCESSORIES INCLUDING:
- 3-JAW CHUCK - 6" DIAMETER
- 6-JAW CHUCK - 5" DIAMETER
- B955 MOTOR DRIVEN WORKHEAD 1/2 HP, 3 PHASE
220/440 VOLTS
- B943 MOTOR DRIVEN WORKHEAD WITH FWD & REV
1/2 HP, 3 PHASE, 220/440 VOLTS
- B942 SENSITIVE WORKHEAD
- DIAMOND WHEEL
- 4" X 8" MAGNETIC CHUCK
- AIR FLOW END MILL SHAPING ATTACHMENT
- 12 MISC COLLETS
