EDWARDS IRONWORKERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$24,796 USD
Manufacturer:
Edwards
Model:
JAWS V 120 TON
Capacity:
120 TON

Specifications

Condition:
new
Stock number:
061872
Amp:
26 AMP
Rpm:
1725 RPM
Volts:
208/240 VOLT
Width:
11-3/4"
Height:
9"
Stroke:
2-1/2"
Cylinder:
2-3/4" RAM
Reservoir:
17 GALLONS
Open height:
9-1/8"
Shut height:
7"
Work height:
36-5/8"
Maximum size:
6" X 6" X 1/2"
Throat depth:
11"
Maximum round:
1-1/4"
Maximum width:
1/2" X 24"
Work height 2:
33-3/4"
Work height 3:
40"
Work height 5:
51-3/4"
Electric motor:
10 HP, 3 PHASE
Maximum square:
1-1/4"
Rated capacity:
120 TON
Valve pressure:
4,500 PSI
Maximum capacity:
3" X 6" X 1/2"
Maximum thickness:
1" X 12"
Hydraulic pump size:
24 GPM
Optional accessories:
PRICE ON REQUEST
Electric motor options:
PRICE ON REQUEST
Subcategory:
Ironworkers

Description

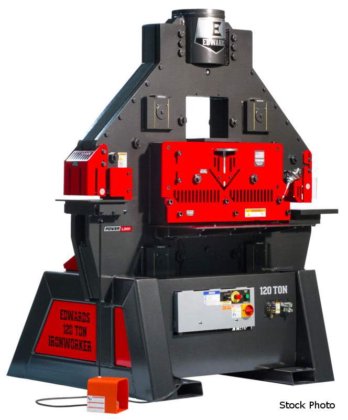

EDWARDS (NEW) MODEL JAWS V 120 TON IRONWORKER
5 STATION
PUNCH:
MAX CAPACITY IN 1" PLATE .. 1-1/2" DIA.
WORK HEIGHT ............... 36-5/8"
FLAT BAR SHEAR:
MAXIMUM WIDTH ............. 1/2" X 24"
MAXIMUM THICKNESS ......... 1" X 12"
MAXIMUM ROUND ............. 1-1/4"
MAXIMUM SQUARE ............ 1-1/4"
WORK HEIGHT ............... 33-3/4"
ANGLE SHEAR:
MAXIMUM SIZE .............. 6" X 6" X 1/2"
WORK HEIGHT ............... 40"
COPER/NOTCHER:
MAXIMUM CAPACITY .......... 3" X 6" X 1/2"
WORK HEIGHT ............... 40"
OPEN CAVITY:
WIDTH ..................... 11-3/4"
HEIGHT .................... 9"
WORK HEIGHT ............... 51-3/4"
GENERAL SPECIFICATONS:
RATED CAPACITY ............ 120 TON
THROAT DEPTH .............. 11"
OPEN HEIGHT ............... 9-1/8"
SHUT HEIGHT ............... 7"
STROKE .................... 2-1/2"
ELECTRIC MOTOR ............ 10 HP, 3 PHASE
VOLTS ..................... 208/240 VOLT
RPM ....................... 1725 RPM
AMP ....................... 26 AMP
HYDRAULIC PUMP SIZE ....... 24 GPM
VALVE PRESSURE ............ 4,500 PSI
RESERVOIR ................. 17 GALLONS
CYLINDER .................. 2-3/4" RAM
STANDARD FEATURES:
COPER NOTCHER
ELECTRIC STROKE CONTROL
ELECTRIC FOOT PEDAL
PEDESTAL DIE TABLE
AUXILIARY M12 POWER PORT
ELECTRIC MOTOR OPTIONS ..... PRICE ON REQUEST
10 HP, 3 PH, 440/480 OR 575 VOLT, 13 AMP
10 HP, 1 PHASE, 230 VOLT, 40 AMP
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
HYDRAULIC ACCESSORY PACKAGE ............ POR
ACCESSORY LIGHT ........................ POR
AUTO CUT ............................... POR
ANGLE NOTCHER 3" X 3" X 1/4" ........... POR
BRAKE W/4-WAY DIE 1/16" 1/8" 3/16" 1/4" POR
MULTI SHEAR ............................ POR
PIPE NOTCHER HOUSING ................... POR
QUICK CHANGE PUNCH COUPLING ............ POR
ROD SHEAR & HOUSING
1/4", 3/8", 1/2", 5/8", 3/4", 1" ...... POR
