PIRANHA IRONWORKERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$31,900 USD
Manufacturer:
PIRANHA
Model:
P110 IRONWORKER
Capacity:
25 GALLON

Specifications

Condition:
new
Stock number:
061854
Motor:
10 HP, 3 PHASE
Punch:
110 TONS
Angle shear:
6" X 6" X 5/8"
Open height:
15-1/2"
Throat depth:
12"
Stroke length:
5-1/4"
Fluid capacity:
25 GALLON
Bar shear - round:
1/2" TO 2"
Bar shear - square:
1/2" TO 1-3/8"
Optional equipment:
PRICE ON REQUEST
Hydraulics pump gpm:
10.5 GPM
Coper notcher - 95 tons:
4" X 6" X 3/8"
Platen table size (d-w):
14-1/2" X 21"
Plate shear 20-1/2" long:
1" X 12"
Subcategory:
Ironworkers

Description

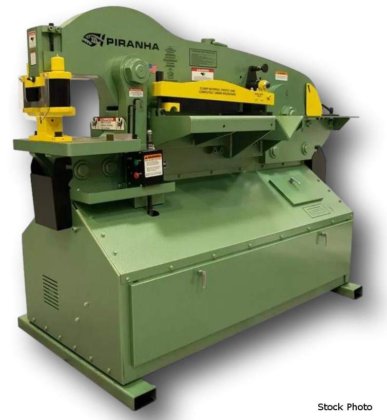

PIRANHA (NEW) MODEL P-110 IRONWORKER
THROAT DEPTH ................. 12"
OPEN HEIGHT .................. 15-1/2"
CLOSED HEIGHT W/O DIE BLOCK .. 10-1/4"
STROKE LENGTH ................ 5-1/4"
PLATEN TABLE SIZE (D-W) ...... 14-1/2" X 21"
PUNCH ........................ 110 TONS
HOLE SIZE (MAX MATERIAL) ... 1-7/16" (1")
MAX HOLE SIZE (MATERIAL) ... 5" (1/4")
PLATE SHEAR 20-1/2" LONG ..... 1" X 12"
............................ 3/4" X 18"
............................ 1/2" X 20"
ANGLE SHEAR .................. 6" X 6" X 5/8"
BAR SHEAR - ROUND ............ 1/2" TO 2"
BAR SHEAR - SQUARE ........... 1/2" TO 1-3/8"
COPER NOTCHER - 95 TONS ...... 4" X 6" X 3/8"
PUNCH END STROKES PER MINUTE . 30 @ 3/4"
WORK STATION HEIGHT (APPROX) . 44"
HYDRAULICS PUMP GPM .......... 10.5 GPM
HYDRAULICS SYSTEM R/V PSI .... 3200 PSI
FLUID CAPACITY ............... 25 GALLON
MOTOR ........................ 10 HP, 3 PHASE
STANDARD EQUIPMENT:
- AUTOMATIC HOLD DOWNS
- PUNCH HOLDER, STRIPPER AND DIE BLOCK
- 5 PUNCH AND DIE SETS 9/16" THROUGH 1-1/16"
- SET OF 1-1/4" ROUND BAR KNIVES
- SET OF 16-5/8" PLATE SHEAR KNIVES
- SET OF COPER KNIVES
- SET OF ANGLE KNIVES
- COUPLING WRENCH
- 3/8" ALLEN WRENCH
- SET OF CHIP BUCKETS
- EXTRA FILTER ELEMENT
- FOOT SWITCH
- INSTRUCTION/PARTS BOOK/VIDEO
STRIPPING (PUNCH STATION):
- URETHANE STRIPPERS KEEP MATERIAL FLAT
- SHORTER STROKE
- NO ADJUSTMENT NECESSARY
HOLD-DOWNS (SHEARING):
- URETHANE HOLD-DOWNS CLAMP AND UNCLAMP THE
MATERIAL AUTOMATICALLY WITH EACH STROKE
- PARTS REMAIN CLAMPED DURING ENTIRE CYCLE
- COMPLETE CLAMPING PROMOTES LONG BLADE LIFE
VISIBILITY (SHEARING)
- EASILY LINE UP CUT LINE TO THE SHEAR BLADE
SHEAR BLADE:
- LOW RAKE ANGLE SHEAR BLADE RESULTS IN
FLATTER PARTS
- FOUR SHEAR EDGES ON EACH BLADE
ANGLE SHEAR:
- FLOATING UPPER BLADE SEATS IN CENTER OF THE
ANGLE, ELIMINATING DISTORTION
COPER NOTCHER:
- LOW RAKE ANGLE BLADE KEEPS PART FLAT AND
UNDER CONTROL
BENDING ATTACHMENT:
- OPEN ENDED, ALLOWING ANGLE TO BE BENT
EASILY
- DOVETAIL SLIDE MAKES THE BENDING ATTACHMENT
EASY TO INSTALL
HEIGHT:
- ALL ATTACHMENTS AND STATIONS ARE THE SAME
HEIGHT - NO NEED TO ADJUST THE FEED TABLE
HEIGHT BETWEEN STATIONS
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
- BACKGAUGES, ELECTRIC OR MANUAL .... POR
- BACKGAUGES WITH LEG, ELEC OR MANUAL POR
- BENDING ATTACHMENTS ............... POR
- CHANNEL DIE BLOCK.................. POR
- CHANNEL SHEAR KITS ................ POR
- FEED TABLE ........................ POR
- MOTOR - SINGLE PHASE .............. POR
- PIPE NOTCHING DIE HOLDER .......... POR
- PIPE NOTCHING DIES ................ POR
- PIPE NOTCHING STRIKER ............. POR
- PRESS BRAKE HOLDERS ............... POR
- PUNCH ATTACHMENTS ................. POR
- PUNCHING QUICK SET PLATE/ANGLE
GAUGING TABLE ..................... POR
- QUICK SET TABLE EXTENSIONS ........ POR
- SPEED UP KIT ...................... POR
FOB IL
CUSTOMER TO PROVIDE FLUIDS
