PIRANHA IRONWORKERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$26,900 USD
Manufacturer:
PIRANHA
Model:
SEP-120 IRONWORKER
Capacity:
30 GALLON

Specifications

Condition:
new
Stock number:
061855
Motor:
10 HP, 3 PHASE
Punch:
120 TONS
Open height:
12-1/4"
Throat depth:
21-1/2"
Stroke length:
2"
Fluid capacity:
30 GALLON
Optional equipment:
PRICE ON REQUEST
Hydraulics pump gpm:
10.5 GPM
Platen table size (d-w):
20" X 10"
Subcategory:
Ironworkers

Description

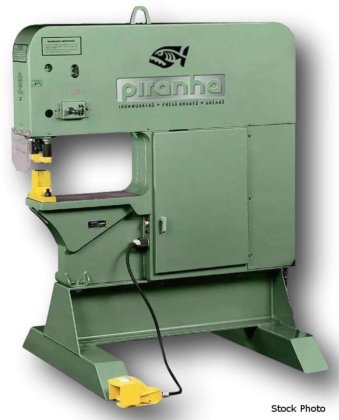

PIRANHA (NEW) MODEL SEP-120 IRONWORKER
THROAT DEPTH ................. 21-1/2"
OPEN HEIGHT .................. 12-1/4"
CLOSED HEIGHT W/O DIE BLOCK .. 10-1/4"
STROKE LENGTH ................ 2"
PLATEN TABLE SIZE (D-W) ...... 20" X 10"
PUNCH ........................ 120 TONS
- HOLE SIZE (MAX MATERIAL) ... 1-1/2"(1")
- MAX HOLE SIZE (MATERIAL) ... 5" (1/4")
PUNCH END STROKES PER MINUTE . 16 SPM @ 1"
WORK STATION HEIGHT (APPROX) . 42"
HYDRAULICS PUMP GPM .......... 10.5 GPM
HYDRAULICS SYSTEM R/V PSI .... 2850 PSI
FLUID CAPACITY ............... 30 GALLON
MOTOR ........................ 10 HP, 3 PHASE
STANDARD EQUIPMENT:
- PUNCH HOLDER, STRIPPER AND DIE BLOCK
- 5 PUNCH AND DIE SETS 9/16" THROUGH 1-1/16"
- FOOT SWITCH
- COUPLING WRENCH
- EXTRA FILTER ELEMENT
- INSTRUCTION/PARTS BOOK
STRIPPING (PUNCH STATION):
- URETHANE STRIPPERS KEEP MATERIAL FLAT
- SHORTER STROKE
- NO ADJUSTMENT NECESSARY
HOLD-DOWNS (SHEARING):
- URETHANE HOLD-DOWNS CLAMP AND UNCLAMP THE
MATERIAL AUTOMATICALLY WITH EACH STROKE
- PARTS REMAIN CLAMPED DURING ENTIRE CYCLE
- COMPLETE CLAMPING PROMOTES LONG BLADE LIFE
VISIBILITY (SHEARING)
- EASILY LINE UP CUT LINE TO THE SHEAR BLADE
SHEAR BLADE:
- LOW RAKE ANGLE SHEAR BLADE RESULTS IN
FLATTER PARTS
- FOUR SHEAR EDGES ON EACH BLADE
ANGLE SHEAR:
- FLOATING UPPER BLADE SEATS IN CENTER OF THE
ANGLE, ELIMINATING DISTORTION
COPER NOTCHER:
- LOW RAKE ANGLE BLADE KEEPS PART FLAT AND
UNDER CONTROL
BENDING ATTACHMENT:
- OPEN ENDED, ALLOWING ANGLE TO BE BENT
EASILY
- DOVETAIL SLIDE MAKES THE BENDING ATTACHMENT
EASY TO INSTALL
HEIGHT:
- ALL ATTACHMENTS AND STATIONS ARE THE SAME
HEIGHT - NO NEED TO ADJUST THE FEED TABLE
HEIGHT BETWEEN STATIONS
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
- CHANNEL DIE BLOCK.................... POR
- MOTOR - SINGLE PHASE ................ POR
- PIPE NOTCHING DIE HOLDER ............ POR
- PIPE NOTCHING DIES .................. POR
- PIPE NOTCHING STRIKER ............... POR
- PUNCH ATTACHMENTS ................... POR
- QUICK SET PLATE/ANGLE GAUGING TABLE . POR
FOB IL
CUSTOMER TO PROVIDE FLUIDS
