Top Seller
PIRANHA IRONWORKERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$26,500 USD
Manufacturer:
PIRANHA
Model:
P90
Capacity:
25 GALLON

Specifications

Condition:
new
Stock number:
061823
Motor:
10 HP, 3 PHASE
Punch:
90 TONS
Volts:
230/460
Angle shear:
5" X 5" X 1/2"
Open height:
15"
Throat depth:
10"
Stroke length:
4-7/4"
Fluid capacity:
25 GALLON
Round bar shear:
1/2" TO 2"
Square bar shear:
1/2" TO 1-3/8"
Optional equipment:
PRICE ON REQUEST
Hydraulics pump gpm:
10.5 GPM
Plate shear - 18" long:
1" X 8"
Platen table size (d-w):
12" X 21"
Subcategory:
Ironworkers

Description

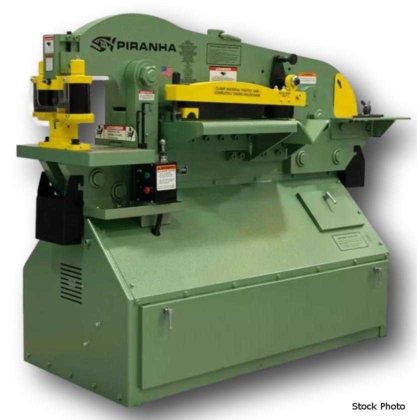

PIRANHA (NEW) MODEL P90 IRONWORKER
THROAT DEPTH ................. 10"
OPEN HEIGHT .................. 15"
CLOSED HEIGHT W/O DIE BLOCK .. 10-1/8"
STROKE LENGTH ................ 4-7/4"
PLATEN TABLE SIZE (D-W) ...... 12" X 21"
PUNCH ........................ 90 TONS
HOLE SIZE (MAX. MATERIAL) .. 1-1/8" (1")
MAX. HOLE SIZE (MATERIAL) .. 5" (3/16")
PLATE SHEAR - 18" LONG ....... 1" X 8"
............................ 3/4" X 12"
............................ 1/2" X 18"
ANGLE SHEAR .................. 5" X 5" X 1/2"
ROUND BAR SHEAR .............. 1/2" TO 2"
SQUARE BAR SHEAR ............. 1/2" TO 1-3/8"
COPER-NOTCHER - 75 TONS .. 3-1/5" X 5" X 3/8"
PUNCH END STROKES PER MINUTE . 32 SPM @ 3/4"
WORK STATION HEIGHT (APPROX) . 42"
HYDRAULICS PUMP GPM .......... 10.5 GPM
HYDRAULICS SYSTEM R/V PSI .... 2800 PSI
FLUID CAPACITY ............... 25 GALLON
MOTOR ........................ 10 HP, 3 PHASE
VOLTS ........................ 230/460
STANDARD EQUIPMENT:
- AUTOMATIC HOLD DOWN
- FOOT SWITCH
- PUNCH HOLDER, STRIPPER AND DIE BLOCK
- 5 PUNCH & DIE SETS 9/16" THROUGH 1-1/16"
- SET OF 14-5/8" PLATE SHEAR KNIVES
- SET OF COPER KNIVES
- SET OF ANGLE KNIVES
- SET OF 1-1/4" ROUND BAR KNIVES
- COUPLING WRENCH
- 3/8" ALLEN WRENCH
- SET OF CHIP BUCKETS
- EXTRA FILTER ELEMENT
- INSTRUCTION/PARTS BOOK/VIDEO
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
- BACKGAUGES, MANUAL OR ELECTRIC .... POR
- BACKGAUGES W/LEG MANUAL OR ELEC ... POR
- BENDING ATTACHMENTS ............... POR
- CHANNEL DIE BLOCK (50 TON) ........ POR
- CHANNEL SHEAR 2" - 8" ADJUSTABLE .. POR
- FEED TABLE ........................ POR
- MOTOR - SINGLE PHASE .............. POR
- PIPE NOTCHING DIE HOLDER .......... POR
- PIPE NOTCHING DIES ................ POR
- PIPE NOTCHING STRIKER ............. POR
- PRESS BRAKE HOLDER ................ POR
- PUNCH ATTACHMENTS ................. POR
- QUICK SET TABLE EXTENSIONS ........ POR
- PUNCHING QUICK SET PLATE / ANGLE
GAUGING TABLE ..................... POR
- SPEED UP KIT ...................... POR
FOB IL
CUSTOMER TO PROVIDE FLUIDS
