PIRANHA PII-88 HYDRAULIC IRONWORKERS in
Location:
Dodge Center, MN
Manufacturer:
PIRANHA
Model:
PII-88 HYDRAULIC
Capacity:
20 GALLON

Specifications

Condition:
used
Stock number:
061650
Motor:
230/460 V 3 PH 1800 RPM 10 HP
Punch:
88 TONS
Angle shear:
5" X 5" X 3/8"
Condition 2:
new
Open height:
14"
Throat depth:
9"
Stroke length:
7"
Fluid capacity:
20 GALLON
Bar shear - round:
1/4" TO 1-1/2"
Bar shear - square:
1/2" TO 1"
Optional equipment:
PRICE ON REQUEST
Hydraulics pump gpm:
7.5
Plate shear 24" long:
3/4" X 8"
Platen table size (d-w):
11" X 38"
Subcategory:
Ironworkers

Description

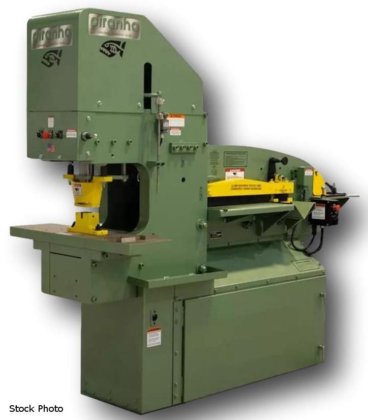

PIRANHA (NEW) MODEL PII-88 HYDRAULIC
IRONWORKER
THROAT DEPTH ................. 9"
OPEN HEIGHT .................. 14"
CLOSED HEIGHT W/O DIE BLOCK .. 7-3/4"
STROKE LENGTH ................ 7"
PLATEN TABLE SIZE (D-W) ...... 11" X 38"
PUNCH ........................ 88 TONS
- HOLE SIZE (MAX MATERIAL) ... 1-1/16" (1")
- MAX HOLE SIZE (MATERIAL) ... 5" (3/16")
PLATE SHEAR 24" LONG ......... 3/4" X 8"
............................ 5/8" X 12"
............................ 1/4" X 24"
ANGLE SHEAR .................. 5" X 5" X 3/8"
ANGLE SHEAR WITH SPECIAL BLADE 4" X 4" X 1/2"
BAR SHEAR - ROUND ............ 1/4" TO 1-1/2"
BAR SHEAR - SQUARE ........... 1/2" TO 1"
COPER NOTCHER - 56 TONS .. 2-3/4" X 4" X 1/4"
PUNCH END STROKES PER MINUTE . 19 @ 1"
WORK STATION HEIGHT (APPROX) . 41"
HYDRAULICS PUMP GPM .......... 7.5
HYDRAULICS SYSTEM R/V PSI .... 3500
FLUID CAPACITY ............... 20 GALLON
MOTOR ......... 230/460 V 3 PH 1800 RPM 10 HP
STANDARD EQUIPMENT:
- AUTOMATIC HOLD DOWNS
- PUNCH HOLDER, STRIPPER AND DIE BLOCK
- 5 PUNCH AND DIE SETS 9/16" THROUGH 1-1/16"
- SET OF 1" ROUND BAR KNIVES
- SET OF 20-5/8" PLATE SHEAR KNIVES
- SET OF COPER KNIVES
- SET OF ANGLE KNIVES
- COUPLING WRENCH
- 2 ELECTRIC FOOT SWITCHES
- CHIP BUCKET
- EXTRA FILTER ELEMENT
- INSTRUCTION/PARTS BOOK
STRIPPING (PUNCH STATION):
- URETHANE STRIPPERS KEEP MATERIAL FLAT
- SHORTER STROKE
- NO ADJUSTMENT NECESSARY
HOLD-DOWNS (SHEARING):
- URETHANE HOLD-DOWNS CLAMP AND UNCLAMP THE
MATERIAL AUTOMATICALLY WITH EACH STROKE
- PARTS REMAIN CLAMPED DURING ENTIRE CYCLE
- COMPLETE CLAMPING PROMOTES LONG BLADE LIFE
VISIBILITY (SHEARING)
- EASILY LINE UP CUT LINE TO THE SHEAR BLADE
SHEAR BLADE:
- LOW RAKE ANGLE SHEAR BLADE RESULTS IN
FLATTER PARTS
- FOUR SHEAR EDGES ON EACH BLADE
ANGLE SHEAR:
- FLOATING UPPER BLADE SEATS IN CENTER OF THE
ANGLE, ELIMINATING DISTORTION
COPER NOTCHER:
- LOW RAKE ANGLE BLADE KEEPS PART FLAT AND
UNDER CONTROL
BENDING ATTACHMENT:
- OPEN ENDED, ALLOWING ANGLE TO BE BENT
EASILY
- DOVETAIL SLIDE MAKES THE BENDING ATTACHMENT
EASY TO INSTALL
HEIGHT:
- ALL ATTACHMENTS AND STATIONS ARE THE SAME
HEIGHT - NO NEED TO ADJUST THE FEED TABLE
HEIGHT BETWEEN STATIONS
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
- AUTOMATIC PUNCH STRIPPERS ......... POR
BACKGAUGES, ELECTRIC OR MANUAL .... POR
BACKGAUGES WITH LEG, ELEC OR MANUAL POR
- BENDING ATTACHMENTS ............... POR
- CHANNEL DIE BLOCK.................. POR
- CHANNEL SHEAR ..................... POR
- DUAL PALM CONTROL ................. POR
- FEED TABLE ........................ POR
- MOTOR - OPTIONAL PHASE OR HP ...... POR
- PIPE NOTCHING DIE HOLDER .......... POR
- PIPE NOTCHING DIES ................ POR
- PIPE NOTCHING STRIKER ............. POR
- PRESS BRAKE HOLDERS ............... POR
- PUNCH ATTACHMENTS ................. POR
- QUICK SET TABLE EXTENSIONS ........ POR
FOB ROCKFORD IL, CUSTOMER TO PROVIDE FLUIDS
