PIRANHA IRONWORKERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$9,850 USD
Manufacturer:
PIRANHA
Model:
P-50 IRONWORKER
Capacity:
12 GALLON

Specifications

Condition:
new
Stock number:
061560
Motor:
3 HP, 3 PHASE
Punch:
50 TONS
Angle shear:
3" X 3" X 3/8"
Open height:
11-1/2"
Throat depth:
5"
Stroke length:
3-3/4"
Fluid capacity:
12 GALLON
Optional equipment:
PRICE ON REQUEST
Hydraulics pump gpm:
3.6
Plate shear - 13" long:
3/4" X 6"
Platen table size (d-w):
8" X 16"
Subcategory:
Ironworkers

Description

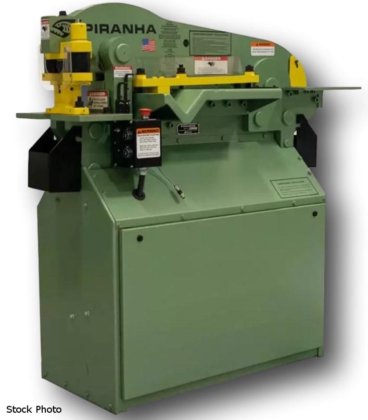

PIRANHA (NEW) MODEL P-50 IRONWORKER
THROAT DEPTH ................. 5"
OPEN HEIGHT .................. 11-1/2"
CLOSED HEIGHT W/O DIE BLOCK .. 7-3/4"
STROKE LENGTH ................ 3-3/4"
PLATEN TABLE SIZE (D-W) ...... 8" X 16"
PUNCH ........................ 50 TONS
HOLE SIZE (MAX MATERIAL) ... 13/16" (3/4")
MAX HOLE SIZE (MATERIAL) ... 3" (3/16")
PLATE SHEAR - 13" LONG ....... 3/4" X 6"
............................ 1/2" X 10"
............................ 3/8" X 12"
............................ 1/4" X 13"
ANGLE SHEAR .................. 3" X 3" X 3/8"
................... 3-1/2" X 3-1/2" X 5/16"
COPER NOTCHER - 40 TONS .. 2-1/4" X 3" X 1/4"
PUNCH END STROKES PER MINUTE . 28 SPM @ 1/2"
WORK STATION HEIGHT (APPROX) . 42"
HYDRAULICS PUMP GPM .......... 3.6
HYDRAULICS SYSTEM R/V PSI .... 2800
FLUID CAPACITY ............... 12 GALLON
MOTOR ........................ 3 HP, 3 PHASE
STANDARD EQUIPMENT:
- HOLD DOWN ASSEMBLY
- PUNCH HOLDER, STRIPPER AND DIE BLOCK
- SET OF 13" PLATE SHEAR KNIVES
- SET OF COPER KNIVES
- SET OF ANGLE KNIVES
- COUPLING WRENCH
- 1/2" ALLEN WRENCH
- ELECTRIC FOOT SWITCH
- INSTRUCTION/PARTS BOOK
STRIPPING (PUNCH STATION):
- URETHANE STRIPPERS KEEP MATERIAL FLAT
- SHORTER STROKE
- NO ADJUSTMENT NECESSARY
HOLD-DOWNS (SHEARING):
- URETHANE HOLD-DOWNS CLAMP AND UNCLAMP THE
MATERIAL AUTOMATICALLY WITH EACH STROKE
- PARTS REMAIN CLAMPED DURING ENTIRE CYCLE
- COMPLETE CLAMPING PROMOTES LONG BLADE LIFE
VISIBILITY (SHEARING)
- EASILY LINE UP CUT LINE TO THE SHEAR BLADE
SHEAR BLADE:
- LOW RAKE ANGLE SHEAR BLADE RESULTS IN
FLATTER PARTS
- FOUR SHEAR EDGES ON EACH BLADE
ANGLE SHEAR:
- FLOATING UPPER BLADE SEATS IN CENTER OF THE
ANGLE, ELIMINATING DISTORTION
COPER NOTCHER:
- LOW RAKE ANGLE BLADE KEEPS PART FLAT AND
UNDER CONTROL
BENDING ATTACHMENT:
- OPEN ENDED, ALLOWING ANGLE TO BE BENT
EASILY
- DOVETAIL SLIDE MAKES THE BENDING ATTACHMENT
EASY TO INSTALL
HEIGHT:
- ALL ATTACHMENTS AND STATIONS ARE THE SAME
HEIGHT - NO NEED TO ADJUST THE FEED TABLE
HEIGHT BETWEEN STATIONS
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
- BACKGAUGES, MANUAL ................ POR
- BACKGAUGE WITH LEG, MANUAL ........ POR
- BENDING ATTACHMENTS ............... POR
- CHANNEL DIE BLOCK.................. POR
- CHIP BUCKET ....................... POR
- COPER TABLE GUIDES (SET OF 3) ..... POR
- MOTOR - SINGLE PHASE .............. POR
- PIPE NOTCHING DIE HOLDER .......... POR
- PIPE NOTCHING DIES ................ POR
- PIPE NOTCHING STRIKER ............. POR
- PUNCH ATTACHMENTS ................. POR
- PUNCH & DIE SETS .................. POR
- PUNCHING QUICK-SET PLATE/ANGLE
GAUGING TABLE ..................... POR
- QUICK SET TABLE EXTENSIONS ........ POR
FOB IL
CUSTOMER TO PROVIDE FLUIDS
