Top Seller
PIRANHA IRONWORKERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$18,500 USD
Manufacturer:
PIRANHA
Model:
P-65 IRONWORKER
Capacity:
20 GALLON

Specifications

Condition:
new
Stock number:
061556
Motor:
7.5 HP, 3 PH
Punch:
65 TONS
Angle shear:
5" X 5" X 3/8"
Open height:
13-1/2"
Throat depth:
8"
Stroke length:
4-1/4"
Fluid capacity:
20 GALLON
Bar shear - round:
1/4" TO 1-1/2"
Bar shear - square:
1/2" TO 1"
Optional equipment:
PRICE ON REQUEST
Hydraulics pump gpm:
7.5 GPM
Plate shear - 15" long:
1" X 4"
Platen table size (d-w):
10" X 17"
Hydraulics system r/v psi:
3000 PSI
Subcategory:
Ironworkers

Description

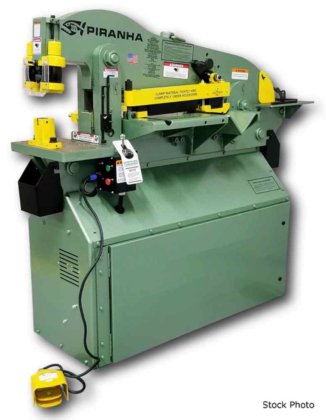

PIRANHA (NEW) MODEL P-65 IRONWORKER
THROAT DEPTH ................. 8"
OPEN HEIGHT .................. 13-1/2"
CLOSED HEIGHT W/O DIE BLOCK .. 9-1/4"
STROKE LENGTH ................ 4-1/4"
PLATEN TABLE SIZE (D-W) ...... 10" X 17"
PUNCH ........................ 65 TONS
HOLE SIZE (MAX MATERIAL) ... 1-1/16" (3/4")
MAX HOLE SIZE (MATERIAL) ... 5" (1/8")
PLATE SHEAR - 15" LONG ....... 1" X 4"
............................ 5/8" X 15"
............................ 3/4" X 10"
ANGLE SHEAR .................. 5" X 5" X 3/8"
BAR SHEAR - ROUND ............ 1/4" TO 1-1/2"
BAR SHEAR - SQUARE ........... 1/2" TO 1"
COPER NOTCHER - 56 TONS .. 2-3/4" X 4" X 1/4"
PUNCH END STROKES PER MINUTE .. 30 SPM @ 3/4"
WORK STATION HEIGHT (APPROX) .. 42"
HYDRAULICS PUMP GPM ........... 7.5 GPM
HYDRAULICS SYSTEM R/V PSI ..... 3000 PSI
FLUID CAPACITY ................ 20 GALLON
MOTOR ......................... 7.5 HP, 3 PH
STANDARD EQUIPMENT:
- AUTOMATIC HOLD DOWN
- PUNCH HOLDER, STRIPPER AND DIE BLOCK
- 5 PUNCH AND DIE SETS 9/16" THROUGH 1-1/16"
- SET OF 1" ROUND BAR KNIVES
- SET OF 12-1/8" PLATE SHEAR KNIVES
- SET OF COPER KNIVES
- SET OF ANGLE KNIVES
- COUPLING WRENCH
- 3/8" ALLEN WRENCH
- SET OF CHIP BUCKETS
- EXTRA FILTER ELEMENT
- FOOT SWITCH
- INSTRUCTION/PARTS BOOK/VIDEO
STRIPPING (PUNCH STATION):
- URETHANE STRIPPERS KEEP MATERIAL FLAT
- SHORTER STROKE
- NO ADJUSTMENT NECESSARY
HOLD-DOWNS (SHEARING):
- URETHANE HOLD-DOWNS CLAMP AND UNCLAMP THE
MATERIAL AUTOMATICALLY WITH EACH STROKE
- PARTS REMAIN CLAMPED DURING ENTIRE CYCLE
- COMPLETE CLAMPING PROMOTES LONG BLADE LIFE
VISIBILITY (SHEARING)
- EASILY LINE UP CUT LINE TO THE SHEAR BLADE
SHEAR BLADE:
- LOW RAKE ANGLE SHEAR BLADE RESULTS IN
FLATTER PARTS
- FOUR SHEAR EDGES ON EACH BLADE
ANGLE SHEAR:
- FLOATING UPPER BLADE SEATS IN CENTER OF THE
ANGLE, ELIMINATING DISTORTION
COPER NOTCHER:
- LOW RAKE ANGLE BLADE KEEPS PART FLAT AND
UNDER CONTROL
BENDING ATTACHMENT:
- OPEN ENDED, ALLOWING ANGLE TO BE BENT
EASILY
- DOVETAIL SLIDE MAKES THE BENDING ATTACHMENT
EASY TO INSTALL
HEIGHT:
- ALL ATTACHMENTS AND STATIONS ARE THE SAME
HEIGHT - NO NEED TO ADJUST THE FEED TABLE
HEIGHT BETWEEN STATIONS
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
- BACKGAUGES, ELECTRIC OR MANUAL ...... POR
- BACKGAUGES WITH LEG, ELEC OR MANUAL . POR
- BENDING ATTACHMENTS ................. POR
- CHANNEL DIE BLOCK.................... POR
- CHANNEL SHEAR KITS .................. POR
- FEED TABLE .......................... POR
- MOTOR - SINGLE PHASE ................ POR
- PIPE NOTCHING DIE HOLDER ............ POR
- PIPE NOTCHING DIES .................. POR
- PIPE NOTCHING STRIKER ............... POR
- PRESS BRAKE HOLDERS ................. POR
- PUNCH ATTACHMENTS ................... POR
- PUNCHING QUICK SET PLATE/ANGLE
GAUGING TABLE ....................... POR
- QUICK SET TABLE EXTENSIONS .......... POR
- SPEED UP KIT ........................ POR
FOB IL
CUSTOMER TO PROVIDE FLUIDS
