EDWARDS IRONWORKERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$18,496 USD
Manufacturer:
Edwards
Model:
JAWS IV 100 TON
Capacity:
100 TON

Specifications

Condition:
new
Stock number:
060419
Amp:
20 AMP
Rpm:
1725 RPM
Volts:
208/240 VOLT
Stroke:
1-7/8"
Cylinder:
3-1/2" RAM
Reservoir:
17 GALLONS
Open height:
8-5/8"
Shut height:
6-3/4"
Work height:
41-1/2"
Maximum size:
6" X 6" X 1/2"
Throat depth:
10"
Maximum round:
1-1/4"
Maximum width:
3/4" X 14"
Work height 2:
40"
Work height 3:
39-1/4"
Electric motor:
7.5 HP, 3 PHASE
Maximum square:
1-1/4"
Rated capacity:
100 TON
Valve pressure:
3,000 PSI
Maximum thickness:
1" X 10"
Optional accessories:
PRICE ON REQUEST
Electric motor options:
PRICE ON REQUEST
Subcategory:
Ironworkers

Description

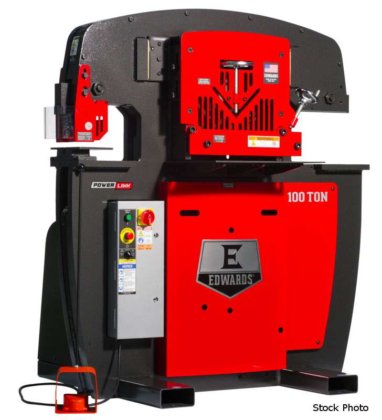

EDWARDS (NEW) MODEL JAWS IV 100 TON
IRONWORKER - 4 STATION
PUNCH:
MAX CAPACITY IN 1" PLATE .. 1-1/16" DIA.
WORK HEIGHT ............... 41-1/2"
FLAT BAR SHEAR:
MAXIMUM WIDTH ............. 3/4" X 14"
MAXIMUM THICKNESS ......... 1" X 10"
MAXIMUM ROUND ............. 1-1/4"
MAXIMUM SQUARE ............ 1-1/4"
WORK HEIGHT ............... 41-1/2"
ANGLE SHEAR:
MAXIMUM SIZE .............. 6" X 6" X 1/2"
WORK HEIGHT ............... 40"
OPEN STATION:
THROAT DEPTH .............. 10"
OPEN HEIGHT ............... 8-5/8"
SHUT HEIGHT ............... 6-3/4"
STROKE .................... 1-7/8"
WORK HEIGHT ............... 39-1/4"
GENERAL SPECIFICATONS:
RATED CAPACITY ............ 100 TON
THROAT DEPTH .............. 10"
OPEN HEIGHT ............... 8-5/8"
SHUT HEIGHT ............... 6-3/4"
STROKE .................... 1-7/8"
ELECTRIC MOTOR ............ 7.5 HP, 3 PHASE
VOLTS ..................... 208/240 VOLT
RPM ....................... 1725 RPM
AMP ....................... 20 AMP
HYDRAULIC PUMP SIZE . 10-1/2 GPM - 2 STAGE
VALVE PRESSURE ............ 3,000 PSI
RESERVOIR ................. 17 GALLONS
CYLINDER .................. 3-1/2" RAM
STANDARD FEATURES:
ELECTRIC STROKE CONTROL
ELECTRIC FOOT PEDAL
PEDESTAL DIE TABLE
AUXILIARY M12 POWER PORT
ELECTRIC MOTOR OPTIONS ..... PRICE ON REQUEST
5 HP, 1 PHASE, 1725 RPM, 20 AMP
7.5 HP, 3 PHASE, 440 VOLT, 1725 RPM, 20 AMP
7.5 HP, 3 PHASE, 575 VOLT, 1725 RPM, 8 AMP
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
HYDRAULIC ACCESSORY PACKAGE ............ POR
ACCESSORY LIGHT ........................ POR
AUTO CUT ............................... POR
ANGLE NOTCHER 3" X 3" X 1/4" ........... POR
BRAKE W/4-WAY DIE 1/16" 1/8" 3/16" 1/4" POR
COPER NOTCHER .......................... POR
MULTI SHEAR ............................ POR
PIPE NOTCHER HOUSING ................... POR
QUICK CHANGE PUNCH COUPLING ............ POR
ROD SHEAR & HOUSING
1/4", 3/8", 1/2", 5/8", 3/4", 1" ...... POR
