EDWARDS IRONWORKERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$9,196 USD
Manufacturer:
Edwards
Model:
JAWS IV 50 TON 1 PH
Capacity:
1" DIA IN 5/8" PLATE

Specifications

Condition:
new
Stock number:
060064
Or:
3" X 3" X 3/8"
Amp:
26 AMP
Rpm:
1725 RPM
Volts:
208/240 VOLT
Stroke:
1-1/8"
Cylinder:
2-1/2" RAM
Reservoir:
7 GALLONS
Cycle time:
2 SECONDS
Open height:
8-1/8"
Shut height:
7"
Work height:
37-5/8"
Max capacity:
1" DIA IN 5/8" PLATE
Maximum size:
4" X 4" X 1/4"
Throat depth:
7"
Work height 2:
35-1/2"
Work height 3:
40-3/4"
Work height 4:
43-1/8"
Optional accessories:
PRICE ON REQUEST
Subcategory:
Ironworkers

Description

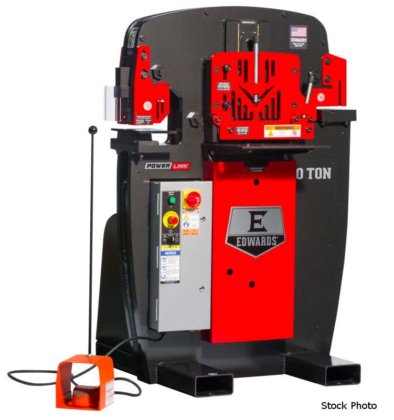

EDWARDS (NEW) MODEL JAWS IV 50 TON IRONWORKER
1 PHASE - 4 STATIONS
PUNCH:
MAX CAPACITY ..... 1" DIA IN 5/8" PLATE
WORK HEIGHT ...... 37-5/8"
FLAT BAR SHEAR:
MAXIMUM WIDTH .... 1/2" X 10"
MAXIMUM THICKNESS 3/4" X 4"
MAXIMUM ROUND .... 3/4"
MAXIMUM SQUARE ... 3/4"
WORK HEIGHT ...... 35-1/2"
ANGLE SHEAR:
MAXIMUM SIZE ..... 4" X 4" X 1/4"
OR ............... 3" X 3" X 3/8"
WORK HEIGHT ...... 40-3/4"
OPEN STATION:
MAXIMUM CAPACITY . 2" X 3" X 5/16"
WORK HEIGHT ...... 43-1/8"
GENERAL SPECIFICATONS:
RATED CAPACITY ... 50 TON
THROAT DEPTH ..... 7"
OPEN HEIGHT ...... 8-1/8"
SHUT HEIGHT ...... 7"
STROKE ........... 1-1/8"
CYCLE TIME ....... 2 SECONDS
ELECTRIC MOTOR ... 5 HP, 1 PHASE
VOLTS ............ 208/240 VOLT
RPM .............. 1725 RPM
AMP .............. 26 AMP
HYDRAULIC PUMP ... 3-1/2 GPM - 1 STAGE
VALVE PRESSURE ... 2,500 PSI
RESERVOIR ........ 7 GALLONS
CYLINDER ......... 2-1/2" RAM
STANDARD FEATURES:
COPER/NOTCHER
ELECTRIC STROKE CONTROL
ELECTRIC FOOT PEDAL
PEDESTAL DIE TABLE
AUXILIARY M12 POWER PORT
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
HYDRAULIC ACCESSORY PACK ............... POR
ACCESSORY LIGHT ........................ POR
AUTO CUT ............................... POR
ANGLE NOTCHER 3" X 3" X 1/4" ........... POR
BRAKE W/4-WAY DIE 1/16" 1/8" 3/16" 1/4" POR
MULTI SHEAR ............................ POR
PIPE NOTCHER HOUSING ................... POR
QUICK CHANGE PUNCH COUPLING ............ POR
ROD SHEAR & HOUSING
1/4", 3/8", 1/2", 5/8", 3/4", 1" ...... POR
